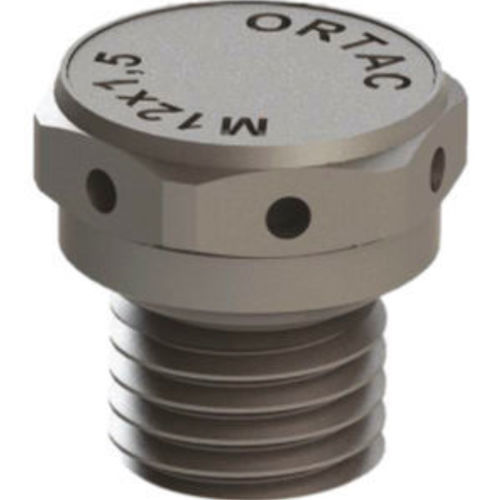

Threaded breather OMBV series

screw-inwaterproof

Product Details
Cap & Body: Nickel plated brass
Washer: NBR / EPDM
Vent Part: Acrylic Co-Polymer on Nylon Support (Hydrophobic - Oleophobic)
Connection thread: Metric (EN 60423)
Protection class: IP68
Temperature range: -20 °C +100 °C / -30 +150 °C

Benefits

• Balance the pressure inside and outside of your systems
• Prevents corrosion and water condensation inside the enclosure
• Extend the lifetime of your product
• Various air flows
• Easy to assemble
• High chemical resistance

Applications

• Industrial and electronic applications
• Wind & Solar Energy Industries applications
• Lighting Industry
• Automotive & Automation technology
• Railway industry

Technical Data
AG Thread | Code | H mm | GL mm | Wrench mm | Thread Diameter mm | Hole Diameter mm | Average Air Flow l/h | Water Intrusion Bar
M 4 x 0,70 | OMBVP4UH | 10 | 3 | 12 | 4 | 4,2 | 70 | 0,1
M 8 x 1,25 | OMBVP8UH | 13 | 6 | 12 | 8 | 8,2 | 70 | 0,1
M 10 x 1,5 | OMBVP10UH | 13 | 6 | 12 | 10 | 10,2 | 70 | 0,1
M 12 x 1,5 | OMBVP01S | 14 | 6 | 17 | 10 | 12,3 | 16 | 0,8
M 12 x 1,5 | OMBVP01M | 14 | 6 | 17 | 12 | 12,3 | 25 | 0,5
M 12 x 1,5 | OMBVP01H | 14 | 6 | 17 | 12 | 12,3 | 150 | 0,2
M 12 x 1,5 | OMBVP01UH | 14 | 6 | 17 | 12 | 12,3 | 300 | 0,1
M 12 x 1,5 | OMBVP01SL | 18 | 10 | 17 | 12 | 12,3 | 16 | 0,8
M 12 x 1,5 | OMBVP01ML | 18 | 10 | 17 | 12 | 12,3 | 25 | 0,5
M 12 x 1,5 | OMBVP01HL | 18 | 10 | 17 | 12 | 12,3 | 150 | 0,2
M 12 x 1,5 | OMBVP01UHL | 18 | 10 | 17 | 12 | 12,3 | 300 | 0,1
M 16 x 1,5 | OMBVP02S | 18 | 10 | 19 | 16 | 16,3 | 16 | 0,8
M 16 x 1,5 | OMBVP02M | 18 | 10 | 19 | 16 | 16,3 | 25 | 0,5
M 16 x 1,5 | OMBVP02H | 18 | 10 | 19 | 16 | 16,3 | 150 | 0,2
M 16 x 1,5 | OMBVP02UH | 18 | 10 | 19 | 16 | 16,3 | 300 | 0,1

Specifications

• Material (Cap & Body): Nickel plated brass
• Washer material: NBR or EPDM
• Vent material: Acrylic co-polymer on nylon support (hydrophobic, oleophobic)
• Connection thread standard: Metric (EN 60423)
• Ingress protection: IP68
• Operating temperature ranges: -20 °C to +100 °C and -30 °C to +150 °C (variants)
• Multiple AG thread sizes and corresponding product codes available (M4, M8, M10, M12, M16)
• Average air flow and water intrusion rating vary by code (see technical data table)
• Typical applications: industrial/electronic enclosures, wind & solar, lighting, automotive/automation, railway
