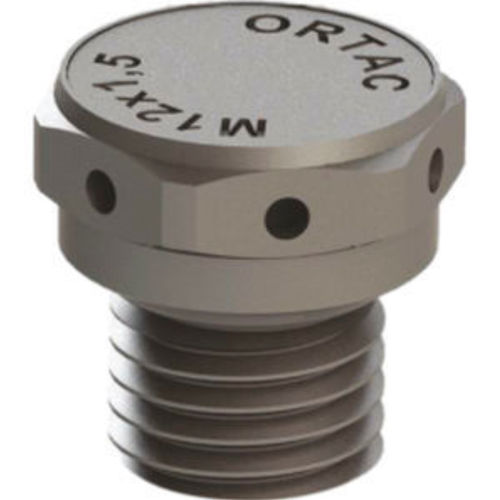

Ventilation Plug OMSVP Series — Stainless steel, hydrophobic/oleophobic membrane

Product Details
Cap & Body: Stainless steel (AISI 303/316L)
Washer: NBR / EPDM
Vent Part: Acrylic co-polymer on nylon support (hydrophobic, oleophobic)
Connection thread: Metric threads (EN 60423)
Protection class: IP68
Temperature range: -30 °C to +150 °C

Benefits

• Balances internal and external pressure of enclosures
• Prevents corrosion and internal condensation
• Contributes to longer equipment lifetime
• Available in multiple air flow ratings to suit different enclosures
• Easy assembly with standard metric threads
• High chemical resistance of vent media

Applications

• Industrial and electronic enclosures
• Wind and solar energy equipment
• Lighting fixtures, food & beverage equipment
• Automotive components and automation systems
• Railway equipment

Technical Data (thread / code / H mm / GL mm / Wrench mm / Thread Diameter mm / Hole Diameter mm / Average Air Flow l/h / Water Intrusion bar)
AG Thread | Code | H mm | GL mm | Wrench mm | Thread Diameter mm | Hole Diameter mm | Average Air Flow l/h | Water Intrusion bar
M 4 x 0,70 | OMSVP4UH | 10 | 3 | 12 | 4 | 4,2 | 70 | 0,1
M 8 x 1,25 | OMSVP8UH | 13 | 6 | 12 | 8 | 8,2 | 70 | 0,1
M 10 x 1,5 | OMSVP10UH | 13 | 6 | 12 | 10 | 10,2 | 70 | 0,1
M 12 x 1,5 | OMSVP01S | 14 | 6 | 17 | 12 | 12,3 | 16 | 0,8
M 12 x 1,5 | OMSVP01M | 14 | 6 | 17 | 12 | 12,3 | 25 | 0,5
M 12 x 1,5 | OMSVP01H | 14 | 6 | 17 | 12 | 12,3 | 150 | 0,2
M 12 x 1,5 | OMSVP01UH | 14 | 6 | 17 | 12 | 12,3 | 300 | 0,1
M 12 x 1,5 | OMSVP01SL | 18 | 10 | 17 | 12 | 12,3 | 16 | 0,8
M 12 x 1,5 | OMSVP01ML | 18 | 10 | 17 | 12 | 12,3 | 25 | 0,5
M 12 x 1,5 | OMSVP01HL | 18 | 10 | 17 | 12 | 12,3 | 150 | 0,2
M 12 x 1,5 | OMSVP01UHL | 18 | 10 | 17 | 12 | 12,3 | 300 | 0,1
M 16 x 1,5 | OMSVP02S | 18 | 10 | 19 | 16 | 16,3 | 16 | 0,8
M 16 x 1,5 | OMSVP02M | 18 | 10 | 19 | 16 | 16,3 | 25 | 0,5
M 16 x 1,5 | OMSVP02H | 18 | 10 | 19 | 16 | 16,3 | 150 | 0,2
M 16 x 1,5 | OMSVP02UH | 18 | 10 | 19 | 16 | 16,3 | 300 | 0,1

Technical Characteristics / specifications

• Cap & body material: Stainless steel (AISI 303/316L)
• Washer: NBR or EPDM
• Vent media: Acrylic co-polymer on nylon support (hydrophobic, oleophobic)
• Connection thread: Metric threads according to EN 60423 (sizes available: M4, M8, M10, M12, M16)
• Protection class: IP68
• Operating temperature range: -30 °C to +150 °C
• Average air flow: model-dependent (examples shown: 16 to 300 l/h)
• Water intrusion resistance: model-dependent (0.1 to 0.8 bar)
