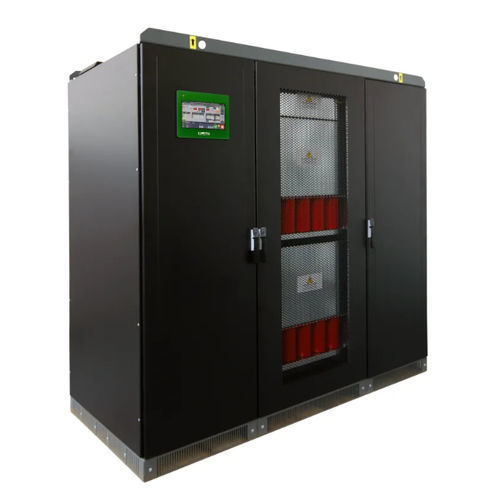

Automatic compensator OXYGEN ZERO

Product

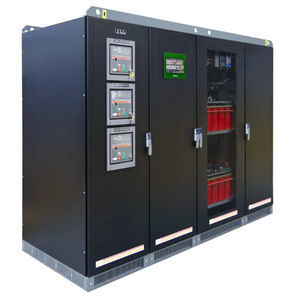

Oxygen Zero micro-interruption compensator designed to maintain supply voltage during short interruptions and fast voltage deviations. Intended for indoor industrial use to protect critical equipment and processes.

Technical specifications
Frequency: 50Hz ±5% (60Hz ±5%)
Voltage regulation: IGBT + Supercapacitors
Selectable target voltage: 380 / 400 / 415V (option: 440 / 460 / 480V)
Output voltage accuracy: ±0.5%
Permissible load variation: up to 100%
Permissible load imbalance [%]: 100
Cooling: Forced ventilation
Ambient operating temperature: 0 to +40°C
Storage temperature: 0 to +60°C
Maximum relative humidity: <95% (non-condensing)
Harmonic distortion: IEC 61000-2-4 Class 2 (THDv < 8%)
Color: RAL 9005

Instrumentation

• 10" multilingual touchscreen (on request; replicable via dedicated software on the same Ethernet network)

Installation
Indoor

Communication system
MODBUS TCP/IP

Surge protection

• Class II surge arrester on output

Available variants
Type: 500-1 | Efficiency: >99 | Rated power: 500 | Input voltage variation [%]: -100 | Output voltage: 400 | Correction time: <5 ms
Type: 1000-1 | Efficiency: >99 | Rated power: 1000 | Input voltage variation [%]: -100 | Output voltage: 400 | Correction time: <5 ms
Type: 1500-1 | Efficiency: >99 | Rated power: 1500 | Input voltage variation [%]: -100 | Output voltage: 400 | Correction time: <5 ms
Type: 2000-1 | Efficiency: >99 | Rated power: 2000 | Input voltage variation [%]: -100 | Output voltage: 400 | Correction time: <5 ms


Characteristics / technical specifications

• Frequency: 50Hz ±5% (60Hz ±5%)
• Regulation: IGBT + Supercapacitors
• Selectable target voltage: 380-400-415V (440-460-480V)
• Output accuracy: ±0.5%
• Permissible load: up to 100%
• Permissible load imbalance: 100%
• Cooling: Forced ventilation
• Operating temperature: 0 to +40°C
• Storage temperature: 0 to +60°C
• Humidity: <95% non-condensing
• Harmonic distortion: IEC 61000-2-4 Class 2 (THDv < 8%)
• Instrumentation: 10" touchscreen, multilingual
• Communication: MODBUS TCP/IP
• Surge protection: Class II surge arrester on output
