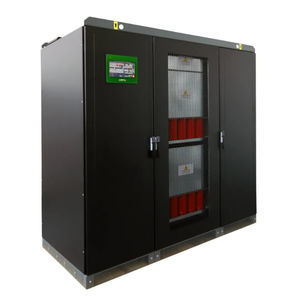

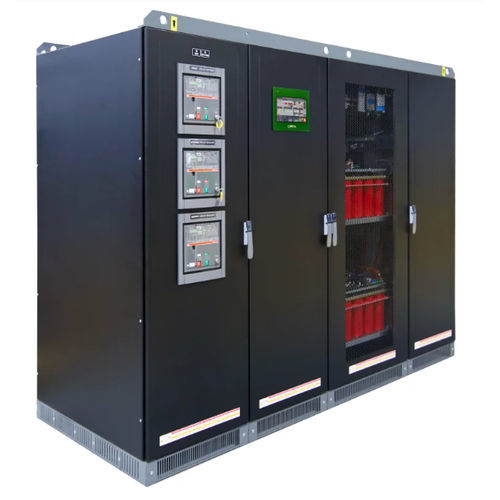

Automatic compensator Oxygen Zero K

Product type
Micro-interruption compensator

Summary
Oxygen Zero K is a micro-interruption compensator designed to maintain output voltage accuracy and protect critical loads from voltage disturbances. It uses IGBT technology combined with supercapacitors for voltage regulation and provides fast correction times (<5 ms) suitable for sensitive equipment.

Variants (summary table)
Type | Efficiency | Rated power (kVA) | Input voltage variation [%] | Output voltage | Correction time
500K-1 | >99 | 500 | -100 | 400 | <5 ms
1000K-1 | >99 | 1000 | -100 | 400 | <5 ms
1500K-1 | >99 | 1500 | -100 | 400 | <5 ms
2000K-1 | >99 | 2000 | -100 | 400 | <5 ms

Key features

• Frequency: 50Hz ±5% (60Hz ±5%)
• Voltage regulation: IGBT + Supercapacitors
• Selectable target voltage: 380-400-415V (440-460-480V)
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Admitted load imbalance [%]: 100
• Cooling: Forced ventilation
• Ambient temperature: 0/+40°C
• Storage temperature: 0/+60°C
• Max relative humidity: <95% (non condensing)
• Harmonic distortion: Harmonic tolerance according to IEC 61000-2-4 Class 2 (THDV < 8%)
• Colour: RAL 9005

Instrumentation

• 10" touch panel, multilingual (remote access on request via dedicated software on the same Ethernet network)

Installation
Indoor

Communication system
MODBUS TCP/IP

Overvoltage protection

• Class II output surge arrestors

Additional protections

• Input automatic circuit breaker
• By-pass line with interlocked circuit breaker
• Output interlocked automatic circuit breaker

Technical specifications

• Admitted load variation: Up to 100%
• Admitted load imbalance: 100%
• Cooling: Forced ventilation
• Ambient temperature: 0/+40°C
• Storage temperature: 0/+60°C
• Max relative humidity: <95% (non condensing)
• Harmonic distortion: THDV < 8% (IEC 61000-2-4 Class 2)
• Colour: RAL 9005
• Variants available: 500K-1, 1000K-1, 1500K-1, 2000K-1 (correction time <5 ms)
