Frequency generator VARYX PLUS
currentvoltagestatic VAR

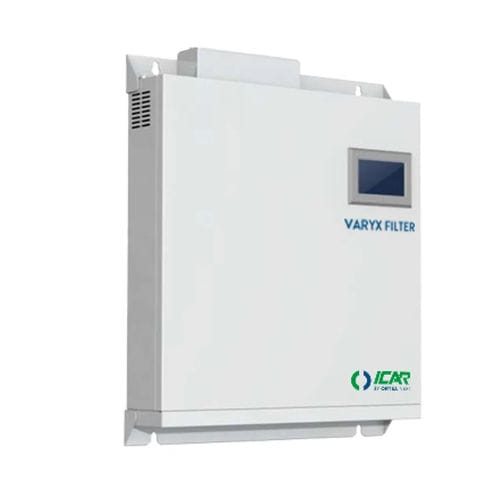

Frequency generator - VARYX PLUS - Ortea Next - current / voltage / static VAR
Frequency generator - VARYX PLUS - Ortea Next - current / voltage / static VAR
Add to favorites
Compare this product
Go to the Ortea Next website for more information

Characteristics

Type
voltage, frequency, current, static VAR
Other characteristics
with built-in display, three-phase
Applications
for industrial applications, for reactive power compensation

Description

Short description
SVG - STATIC VAR GENERATOR for dynamic reactive power compensation and harmonic mitigation in three-phase industrial installations.

Technical specifications
  • Rated voltage: Ue = 400V (230V - 450V)
  • Frequency: 50Hz / 60Hz (45÷62.5Hz)
  • Plant type / number of phases: 3 phases, 3 wires or 3 phases, 4 wires
  • CT wiring: Load/supply side, closed-loop sampling
  • Harmonic compensation: from the 3rd to the 13th
  • Parallel units: possibility of operation of several units in parallel
  • Response time: < 50μs
  • Total response time: < 15ms
  • Relative humidity: <95%, non condensing
  • Altitude: ≤1500 m; between 1500 and 4000 m, capacity decreases by 1% for every 100 m of altitude
  • Switching frequency: 40 kHz
  • Communication ports: RS485, Ethernet RJ45
  • Communication protocol: Modbus RTU / TCP-IP
  • Protections: overload, short-circuit, overheating, overvoltage and undervoltage protections
  • Protection degree: IP20
  • Graphic interface: 4.3" touch display for commissioning and monitoring. Includes Ethernet interface
  • Colour: RAL 7035

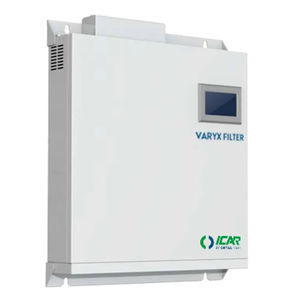

Variants - Wall-mounted version
  • VARYX.P.W-30 | VARYX PLUS WALL 30kvar | 99% | 500x470x90 mm | 18 kg | VARYX+PLUS_VARYX+PLUS+WALL+30kvar_en_09_04_2026.pdf
  • VARYX.P.W-50 | VARYX PLUS WALL 50kvar | 99% | 500x470x90 mm | 18 kg | VARYX+PLUS_VARYX+PLUS+WALL+50kvar_en_09_04_2026.pdf
  • VARYX.P.W-75 | VARYX PLUS WALL 75kvar | 99% | 500x520x100 mm | 30 kg | VARYX+PLUS_VARYX+PLUS+WALL+75kvar_en_09_04_2026.pdf
  • VARYX.P.W-100 | VARYX PLUS WALL 100kvar | 99% | 500x520x100 mm | 30 kg | VARYX+PLUS_VARYX+PLUS+WALL+100kvar_en_09_04_2026.pdf
  • VARYX.P.W-200 | VARYX PLUS WALL 200kvar | 98.5% | 500x600x220 mm | 60 kg | VARYX+PLUS_VARYX+PLUS+WALL+200kvar_en_09_04_2026.pdf


Characteristics / technical specifications
  • Rated voltage: Ue = 400V (230V - 450V)
  • Frequency: 50Hz / 60Hz (45÷62.5Hz)
  • Phases: 3 phases (3W or 4W)
  • Harmonic compensation: 3rd to 13th
  • Response time: <50μs; Total response time: <15ms
  • Communication: RS485, Ethernet RJ45 (Modbus RTU / TCP-IP)
  • Protection degree: IP20; Protections vs overload, short-circuit, overheating, over/undervoltage
  • Graphic interface: 4.3" touch display for commissioning and monitoring
  • Colour: RAL 7035
