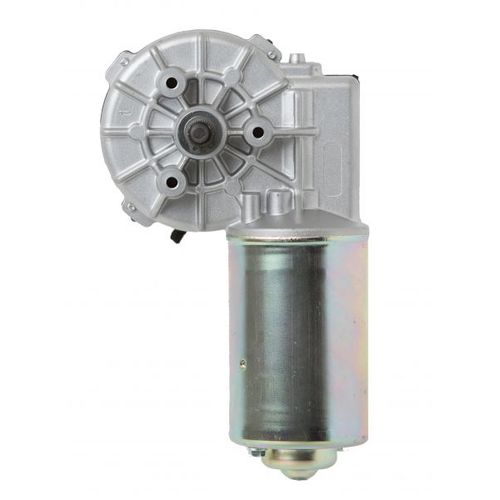

Gearmotor Direct Drive Wiper Motor (DDWM) 62-43
Gearmotor Direct Drive Wiper Motor (DDWM) 62-43: DC gear motor with permanent magnet, 12V or 24V,electronically powered, for wiper functions with possibility to mount a single arm or a pantograph arm, with customizable angle and speed. The gear motor may be equipped with an EMC filter, compliant to the EMC regulations.
If specially requested by the customer, the product may be provided with the relevant certification.
Nominal Voltage: 12V DC
Nominal Torque: 4 Nm
Starting Torque: 25 Nm
Emc Filter: Yes
Thermal Protection: Yes
Reverse Power Protection: Yes
Operation Temperature: -20°C / +60°C
Wiped Angle (Software): 45° + 360°
Parking Position (Software): TBD (Left or Right)
Weight: 1.6 Kg
Drive Mode: -
Analog Mode
LIN Bus Interface
CAN Bus Interface
