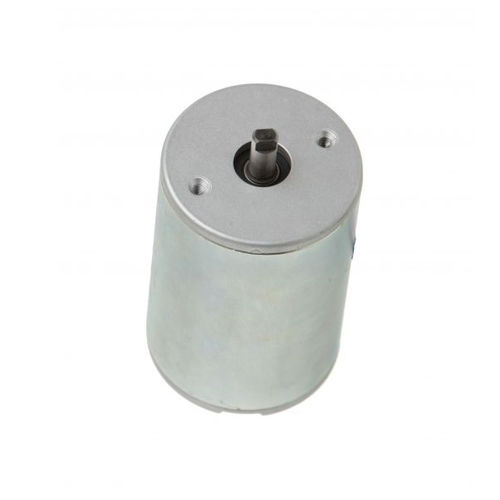

DC motor M76
synchronous24V12V

DC motor
DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
24V, 12V, 48V, 36V
Protection class
EMC
Other characteristics
4-pole, industrial, permanent magnet, slotless
Torque

2.5 Nm (1.8439 ft.lb)

Power

120 W (0.163 hp)

Rotational speed

Min.: 1,000 rpm (6,283.19 rad.min-1)

Max.: 5,000 rpm (31,415.93 rad.min-1)

Diameter

77 mm (3.03 in)

Description

Motor M76 double flange: DC motor with permanent magnets 12, 24, 36 and 48 Volt, with starting torque up to 2.5 Nm. Further details such as parts’ images, nominal voltage, no-load speed and output power , are available on the technical data sheet. If specifically requested by the customer, DC motors may be provided with a specific certification. TECHNICAL DATA Nominal Voltage (VDC): 12, 24, 36, 48 No Load speed (RPM): 1000÷5000 Max Output Power (W): <120 Starting Torque (Nm): <2,5 Duty Type: S1, S2, S3 - S3 Weight (Kg): <1,6 Accessories: - • Standard EMC filter • Single or dual channel Hall sensor with 1, 2, 4, 8, pulses/revolution Customizations: - • EMC filter • Thermal protection • Output shaft • Connector and wiring

Catalogs

M76
M76
1 Pages
M76_DF
M76_DF
1 Pages
