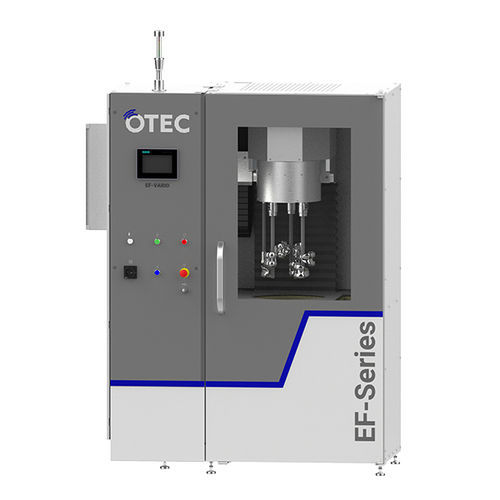

Polishing finishing machine EF-VARIO

finishingCNCindustrial

Product overview
The EF-Vario electro finishing machine provides repeatable surface finishing with high process reliability and efficient operation. Designed for industrial use, it combines precise electrochemical finishing, intuitive handling and modular station configurations to suit varying batch sizes and part geometries.

Why the EF-Vario?

• Maximum flexibility: quick station changeover for 3, 5 or 8 holder configurations to process different workpieces and batch sizes without complex rebuilding.
• Cost-efficient output: optimised price-performance for serial and small-batch production.
• Processing of internal geometries: auxiliary cathode enables electro finishing of internal features.
• Compact footprint: bridges the gap between entry-level machines and high-performance systems.
• User-friendly process media: cyanide-free formulations without aggressive acids for safer handling.

The new premium class of surface finishing

• Repeatable processes: simple programming of multi-stage cycles for consistent results.
• Variable capacities: station configuration determines maximum diameter, component length, weight per station and number of parts per process.

Stations / Capacities
Stations | Max. diameter | Lmax. | kg/station
3 | Ø130 mm | 180 mm | 10 kg
5 | Ø100 mm | 180 mm | 6 kg
8 | Ø70 mm | 180 mm | 3.75 kg

Additional features

• Stand-alone option for manual loading of single parts.
• Wide material compatibility: suitable for common industrial metals.
• Developed for demanding industries: medical technology, toolmaking, pharmaceuticals, food, mobility, fashion, aerospace, dental.

Specifications

• Model: EF-Vario
• Station configurations: 3, 5, 8
• Maximum component length (Lmax): 180 mm
• Max. diameter per configuration: 3 stations – Ø130 mm; 5 stations – Ø100 mm; 8 stations – Ø70 mm
• Workpiece weight per station: 3 st. – 10 kg; 5 st. – 6 kg; 8 st. – 3.75 kg
• Auxiliary cathode for internal geometry processing
• Cyanide-free process media (no aggressive acids)
• Simple programming for multi-stage repeatable processes
• Compact design between entry-level and high-performance systems
• Stand-alone option for manual loading
• Suitable for common industrial metals
