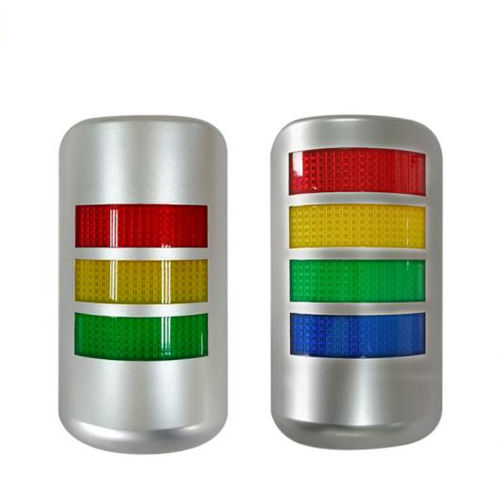

LED stack light OLS

steady4-color5-color

Product overview
Otennlux OLS wall-mounted signal light is available in 3-color and 4-color LED configurations and can be supplied with an integrated buzzer. Logo printing and custom color configurations are supported.

Details

• LED lamps available in 3 colors or 4 colors: red, yellow, green, blue (configurations selectable)
• Efficient LED multi-signal lamps with competitive pricing
• High-quality plastic cover
• Five layer options: one layer (red); two layers (red & green); three layers (red, yellow & green); four layers (red, yellow, green & blue); five layers (red, yellow, green, blue & white)
• Customization supported for other color configurations

Product table
Product Name: Wall-mounted signal light
Item No.: OLS
Brand: Otennlux
Diameter in mm: 190 x 100 mm
Material: Plastic
Signal effect: Steady light
Protection rating: IP20
Voltage: 24 V DC
Color: 3 colors / 4 colors (option for 5 layers)
Buzzer: YES (integrated option)
Installation: Wall-mounted
Working temperature: -25 to 55 °C
Connecting: cable / M12
Warranty: 3 Years

Certifications
CE / ROHS / UL / ETL / CCC / Anti-Explosion

Features / Technical specifications

• Item No.: OLS
• Brand: Otennlux
• Product Name: Wall-mounted signal light
• Diameter: 190 x 100 mm
• Material: Plastic
• Signal effect: Steady light
• Protection rating: IP20
• Rated voltage: 24 V DC
• Color options: 3 colors or 4 colors (red, yellow, green, blue; 5-layer option adds white)
• Buzzer: Yes (integrated option)
• Installation: Wall-mounted
• Working temperature range: -25 to 55 °C
• Connection: cable or M12
• Warranty: 3 years
• Payment terms: EXW / FOB / CNF
• Product origin: China
• Shipping port: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days
