LED stack light MSL2-401

4-colorwall-mountedpole-mounted

Overview

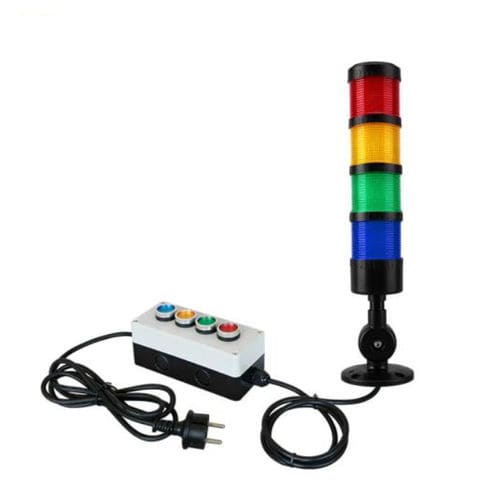

LED tower signal light with switch button, designed for wall or rod mounting on CNC machine tools. Modular LED design available in 1–5 layers, optional buzzer, voltage range 100-277 V, lamp body diameter 64 mm. Suitable for industrial machine status signaling.

Features

• Otennlux LED industrial tower signal light with switch button (available colors per layer: red, yellow, green, blue, white)
• Plastic housing for standard industrial environments
• 4-layer tower configuration available; modular stacking for 1–5 layers
• 64 mm diameter lamp body for compact mounting
• Mixed-prism lampshade to reduce visual blind spots and improve long-distance visibility
• Double-mirror internal structure to enhance LED light propagation and distinct color recognition with fewer LEDs
• Installation options: direct wall mount or rod installation; straight, extended straight or foldable mounting arms
• LED modules are freely assemblable to reorder or add modules without rewiring

Sizes / Color Configurations

• One layer – red (default)
• Two layers – red & green (default, top to bottom)
• Three layers – red, yellow & green (default, top to bottom)
• Four layers – red, yellow, green & blue (default, top to bottom)
• Five layers – red, yellow, green, blue & white (default, top to bottom)

Product Table
Product name: LED tower signal light with switch button for CNC machine tools
Item No.: BMSL2-401
Brand: Otennlux
Material: Plastic
Voltage: 100-277 V
Color: 1/2/3/4/5 layer options
Buzzer: Optional (Yes/No)
Installation: Straight / straight extended / foldable (wall or rod mounting)
Connection: cable / M12 connector
Warranty: 3 Years

Technical specifications

• Model: BMSL2-401
• Alternate item reference: MSL2-401 (appears on page)
• Brand: Otennlux
• Product type: LED tower signal light with switch button for CNC machine tools
• Material: Plastic
• Diameter: 64 mm
• Voltage range: 100-277 V
• Available layers: 1 / 2 / 3 / 4 / 5
• Default color sequences: see Sizes / Color Configurations
• Buzzer: optional
• Installation modes: straight / straight extended / foldable (wall or rod mounting)
• Connection options: cable or M12
• LED module: modular, allows rearrangement or addition without rewiring
• Warranty: 3 Years
