LED stack light OLSY

4-colorIP23surface-mount

Overview

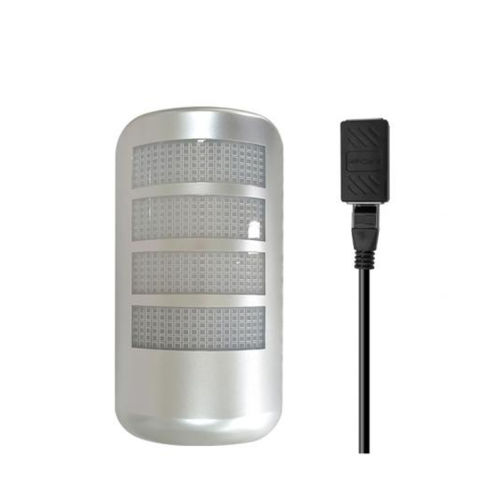

Otennlux OLSY Ethernet Multi-Functional Signal Light: a networked 4-color LED beacon with optional buzzer, aluminum + plastic housing. Designed for industrial machine and line status indication where Ethernet/MODBUS integration is required.

Control & Communication

• Control modes: simple application protocol over TCP/IP; MODBUS TCP/IP
• Default server IP: 192.168.1.10
• Simple application port: 1000
• MODBUS TCP port: 502

Electrical & Performance

• Operating voltage range: 12VDC ~ 30VDC (detailed specification)
• Additional listed voltages: 5V / 24V (table entry)
• Rated current: 350 mA (LED fully illuminated, buzzer on)
• Power-on initialization time: 1 s
• LED color depth: 24‑bit true color
• Ingress protection: IP23
• Operating temperature: -25°C to +50°C
• Buzzer: optional (Yes/No)
• Installation method: screw mounting

Materials & Mechanical

• Housing material: aluminum + plastic
• Color configuration: 4 independent color lanes
• Connection interface: Ethernet, MODBUS TCP (port 502)

Commercial / Logistics

• Item no.: OLSY
• Brand: Otennlux
• Payment terms: EXW / FOB / CNF
• Origin: China
• Shipping ports: Guangzhou / Shenzhen / Shanghai
• Lead time: 5–7 days
• Warranty: 3 years

Application

• CNC machine tools and tooling equipment
• Textile machinery
• Security and inspection systems
• Electronic production and test equipment
• Automated production lines and packaging
• LED packaging equipment
• Laser and spectral instrumentation
• Food filling and processing machinery
• Ceramic production machinery
• Automated warehouse systems and HMI interfaces

Technical Specifications

• Product name: Ethernet Multi-Functional Signal Light
• Item no.: OLSY
• Brand: Otennlux
• Material: Aluminum + Plastic
• Voltage: 5V / 24V (table); operating range 12VDC ~ 30VDC (detailed)
• Rated current: 350 mA (LED full, buzzer on)
• Power-on initialization: 1 s
• LED: 24‑bit true color
• Control: TCP/IP simple protocol; MODBUS over TCP/IP
• Communication: Server IP 192.168.1.10; app port 1000; MODBUS port 502
• Operating temperature: -25°C to +50°C
• Protection class: IP23
• Colors: 4 lanes
• Buzzer: optional
• Mounting: screw
• Warranty: 3 years
