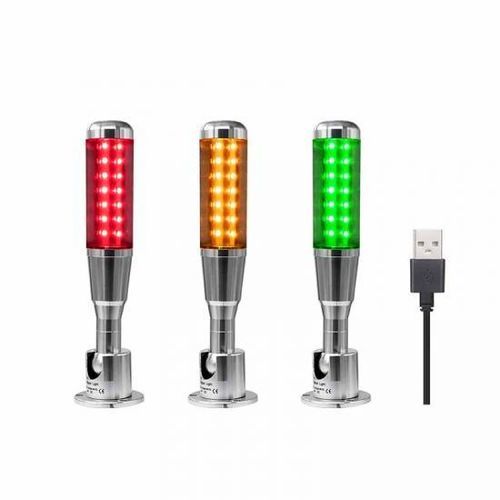

LED stack light OBS-USB-01

3-colorwith buzzerPC-controllable

Overview
Three-color USB stack light designed for industrial signalization and machine status indication. The tower connects and is controlled via a PC USB port; available in 5V, 24V and wide-range 100–277V versions.

Features

• USB-powered LED signal tower that plugs directly into a PC USB port; no external power supply required for USB versions.
• Pre-wired and pre-assembled for quick installation.
• Included desktop control software for simple operation via mouse.
• Developer libraries available for customer integration (Visual Basic and other environments).
• Aluminium PCB for improved heat dissipation and reduced light degradation.
• High-lumen SMD2835 LEDs with approximately 50,000 hours life.
• Aluminium housing for enhanced heat and shock resistance.

Product details

• 3-color industrial USB LED signal tower stack light.
• Lamp body diameter: 50 mm.
• Clear recognition at long distances.
• Installation options: straight, extended straight, foldable.
• Buzzer: optional (Yes/No).

Application

• CNC machine tools and numerically-controlled equipment
• Textile machinery
• Security inspection systems
• Electronics manufacturing and automated production lines
• LED packaging and spectral measurement equipment
• Laser equipment
• Food filling machines
• Ceramic processing equipment
• Automated warehouses and human-machine interfaces

Specifications

• Product Name: 3 colors USB stack light
• Item No.: OBS1-USB-01
• Brand: Otennlux
• Material: Aluminium
• Voltage: 5V / 24V / 100-277V
• Color options: 1 / 2 / 3 colors
• Buzzer: Yes / No
• Installation: Straight / Extended straight / Foldable
• Connection: USB
• Warranty: 3 Years
• Payment terms: EXW / FOB / CNF
• Origin: China
• Shipping ports: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days
