Lamp QLED3-115

LEDindustrialIP67

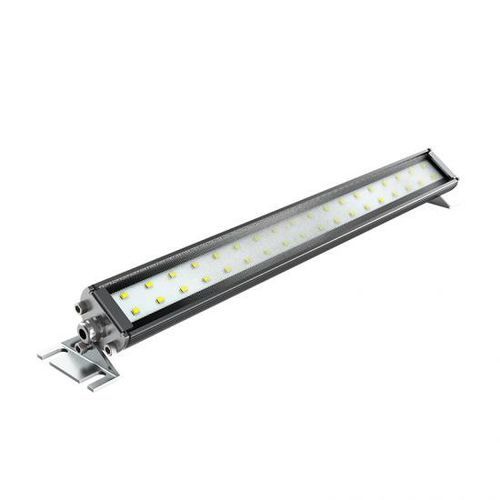

Product overview Otennlux QLED3-115 tri-proof LED lamp designed for internal machine lighting. Explosion-proof construction with IP67 protection, 15W LED module and available in 24V and 100-277V variants. Suitable for continuous use in industrial machine environments.

Applications Suitable for internal lighting of CNC machine tools, lathes, milling machines, workbenches and other industrial machining environments.

Features

• 15W LED module with long life (50,000 hours) and energy-efficient operation
• Protection rating IP67: waterproof, dustproof, oil-resistant and explosion-proof
• Tempered glass outer casing for pressure and explosion resistance
• Aluminum alloy heatsink for effective thermal dissipation
• Waterproof connector, silicone sealing ring and reflector/lens designed for coolant-resistant operation
• Uniform light distribution and color rendering index > 80, no flicker, no audible buzzing
• Operating temperature range: -25°C to +55°C
• Certifications: CE, ROHS, UL, ETL, CCC (additional certifications available)

Basic information Item no.: QLED3-115
Product origin: China
Product weight: 2000 g
Shipping port: Guangzhou / Shenzhen / Shanghai
Lead time: 5-7 days

Technical specifications

• Product Name: IP67 15W CNC machine lamp
• Item No.: QLED3-115
• Brand: Otennlux
• Material: Aluminum alloy + Tempered glass
• Wattage: 15W
• Voltage: 24V / 100-277V
• IP Rating: IP67
• LED Life: 50,000 hours
• Installation Size: 45 x 508 mm
• Warranty: 3 years
• Color Rendering Index: > 80
• Operating Temperature: -25°C to +55°C
• Certifications: CE, ROHS, UL, ETL, CCC, explosion-proof as listed
• Design notes: Tempered glass outer casing for explosion/pressure resistance; aluminum heatsink for thermal management; waterproof connector and silicone sealing for coolant-resistant operation in CNC environments
