LED stack light OLD

steady2-color3-color

Product Overview

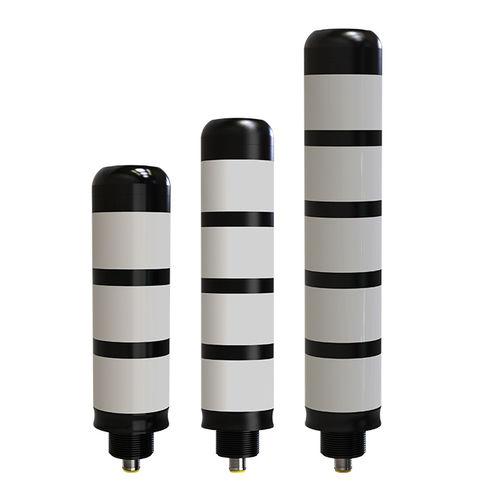

Otennlux LED stack light, model OLD-301-BNP-RYG, is a 50 mm diameter multi-signal tower designed for outdoor industrial use. It operates at 24V DC and is offered in a standard 3-color, 3-layer configuration (red, yellow, green). The unit is supplied with an M12 connector and combines an aluminium alloy body with high-quality plastic covers.

Details

• 3-layer LED stack light (red, yellow, green).
• Body diameter: 50 mm.
• Body material: aluminium alloy; cover: high-quality plastic.
• Marketed protection rating: IP54; product table lists protection rating IP67.
• Connector type: M12.
• Buzzer: not included.
• Installation options: straight / straight-extended / foldable / panel or bracket mount.
• Operating temperature range: -25 to 55°C.
• Warranty: 3 Years.
• Nominal voltage: 24V DC.

Available layer/color configurations

• One layer — red (default).
• Two layers — red & green (default, top to bottom).
• Three layers — red, yellow & green (default, top to bottom).
• Four layers — red, yellow, green & blue (default, top to bottom).
• Five layers — red, yellow, green, blue & white (default, top to bottom).
• Custom color configurations supported on request.

Commercial / Logistics Info

• Item no.: OLD-301-BNP-RYG
• Payment terms: EXW / FOB / CNF
• Country of origin: China
• Shipping ports: Guangzhou / Shenzhen / Shanghai
• Typical lead time: 5–7 days

Certifications

• CE
• RoHS
• UL
• ETL
• CCC
• Optional: ATEX/Anti-Explosion certifications available for some variants

Product Details (table)
Product Name: LED stack light
Item No.: OLD-301-BNP-RYG
Brand: Otennlux
Diameter: 50 mm
Material: aluminium alloy (body), high-quality plastic (cover)
Signal effect: steady light (multi-signal)
Protection rating: marketed IP54; product table indicates IP67
Voltage: 24V DC
Color: 3 colors (standard)
Buzzer: No
Installation: straight / straight-extended / foldable / mount
Working temperature: -25 to 55°C
Connector: M12
Warranty: 3 Years

Technical specifications

• Model/Series: OLD (this variant: OLD-301-BNP-RYG).
• Nominal voltage: 24V DC.
• Body diameter: 50 mm.
• Body material: aluminium alloy; cover: high-quality plastic.
• Ingress protection: marketed IP54; internal table lists IP67.
• Lighting mode: steady light (multi-signal configuration).
• Color options: standard red, yellow, green; up to five-layer options available.
• Connector: M12.
• Buzzer: not included.
• Installation methods: straight, straight-extended, foldable, mount.
• Operating temperature: -25°C to 55°C.
• Warranty: 3 years.
• Packaging/Commercial: EXW/FOB/CNF; shipping ports: Guangzhou / Shenzhen / Shanghai; lead time typically 5–7 days.
