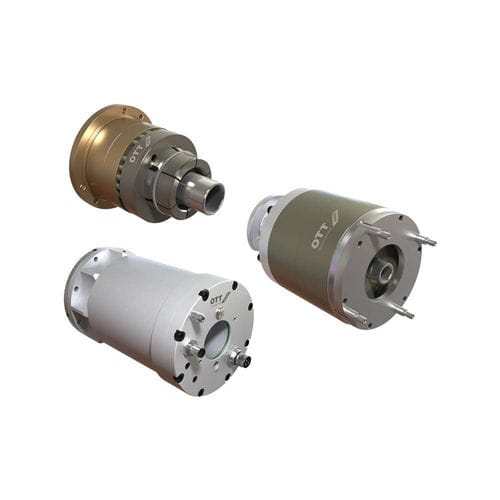

Hydraulic clamping system LE Series

pneumaticelectricspring

A WIDE RANGE OF SOLUTIONS WITH VARYING CLAMPING FORCE OTT-JAKOB clamping systems work through spring force. External force is therefore required in order to unclamp the clamping systems and release the tool. Our wide range of products has a comprehensive selection of unclamping units in three variants: Hydraulic Pneumatic Electric The necessary amount of actuating force depends on the size and technical specifications of the clamping system. In order to reach an optimal compromise between size and necessary release pressure for all clamping systems, our unclamping units are available in several sizes. Bearing relief Depending on the type, our unclamping units are available with spindle bearing relief. The intelligent actuating mechanism with grippers minimises the spindle load, which contributes to significantly lengthening the life span of the spindle bearing. Holder for GD rotary unions OTT-JAKOB unclamping units are suitable for holding GD rotary unions Signal ring monitor Selected variants can be equipped with a signal ring monitor. This allows the user to precisely define the clamping statuses ‘Unclamped’, ‘Tool clamped’ and ‘Clamped without tool’. The unclamping units feature extended grippers in order that the signal ring connected to the pulling head can be reached by a proximity sensor.
