Liquids micro-dispenser

screwautomatic

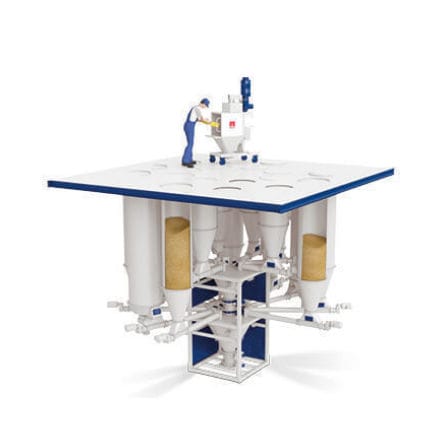

Micro-ingredient dosing systems The Ottevanger micro-ingredient dosing systems can be designed to include up to 34 dosing cells, each equipped with a screw feeder. Rotary discharge equipment can be provided for poorly flowing products as an option. The screw feeders discharge into one, two or three weighers, depending on the total number of components. The weighers can be set up on various levels and work simultaneously. In the set-up with three weighers, the top weigher has a net weighing capacity of 5 kg, the middle one 10 kg and the bottom one 50 kg. They are accurate to 5, 10 and 50 g respectively. The micro-ingredient dosing systems have two flexible rotary valves with a flexible connection which acts as an airlock. The separate bins are made of stainless -or mild steel and have a special inner layer for food products. The dosing screws can have different diameters. A larger screw is provided with a smaller screw underneath to achieve optimum accuracy. In modern feed plants can the micro-ingredient dosing system work inline with the central charge system. Features •High accuracy in weighing •Flexibele formulation •Fully automatic controlled proces •Dustproof design
