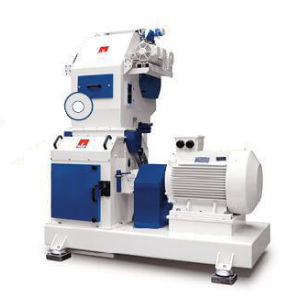

Hammer mill 650 series

horizontalwith automatic feeder

Hammer Mills 650 100 years of experience and innovation have led to the development of a wide range of high-efficiency hammer mills. The Ottevanger Hammer Mills 650 series are eminently suitable for grinding granulates up to 20 mm diameter. Depending on the screen-size used, the mill is able to reduce the particle size down to approx. 200 micron. The Hammer Mills 650 features a solid all-welded construction and has a number of benefits, which are mentioned below Features Hammer Mills 650 •The base plate is mounted on anti-vibration units; vibrations are, therefore, not transmitted to the building. •Large doors/hatches enable easy and convenient replacement of worn parts •Precisely balanced rotor with specially sealed bearing housings with dust protection •The screen covers nearly three-quarters of the grinding circumference •Quick and easy screen replacement without stopping the mill •Type 650-375 is only available in single rotation execution •Type 650-550 is executed in dual direction of rotation •Fully enclosed vibrator feeder with permanent magnet, equipped with a roll feeder with automatic self-cleaning magnet – and stone trap •Very high-efficiency rate
