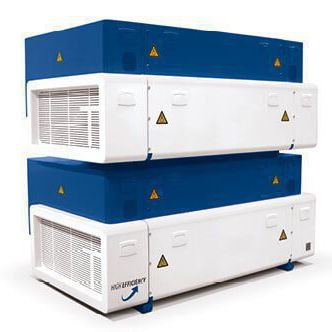

Roller mill HE series
horizontalgrainfor biomass

roller mill
roller mill
roller mill
roller mill
roller mill
roller mill
roller mill
Add to favorites
Compare this product


Characteristics

Technology
roller
Orientation
horizontal
Product application
grain, for biomass
Other characteristics
automatic
Output

Max.: 60 t/h (37 lb/s)

Min.: 0 t/h (0 lb/s)

Machine length

1,446 mm, 2,136 mm, 2,676 mm (57 in)

Machine width

1,366 mm (54 in)

Machine height

875 mm, 1,750 mm, 2,625 mm (34 in)

Description

The new Roller mills series HE are developed to crush or grind various materials, such as grain, oilseeds, biomass and others with an optimum result and low energy requirements. One, two or three on top of each other mounted units, each with two large, independently driven rollers ensure an even flow to breaker rollers. The large-scale axially riffled breaker rollers rotate at the same speed in opposite directions and cut the pellet to a crumble. One top unit The top unit consists of a continuous adjustable-speed rotating feeder which can rotate in two directions and a crushing unit. One rotating direction of the feeder is to the two solid-Hartguss breaker rolls. The opposite direction is the bypass function. The breaker rolls are independently driven and transmission is by means of double-toothed timing belts. Speed control of the structure roller transmission is measured by sensors. Engaging and disengaging of the rollers to an adjustment accuracy of 0.1 mm is manual or automatic to an adjustment accuracy 0.01 mm (optional). One or two extra crushing units The top unit can be extended with one or two extra crushing units, each of which consists of two solid-Hartguss breaker rolls. This ensures an optimum crushing result.
