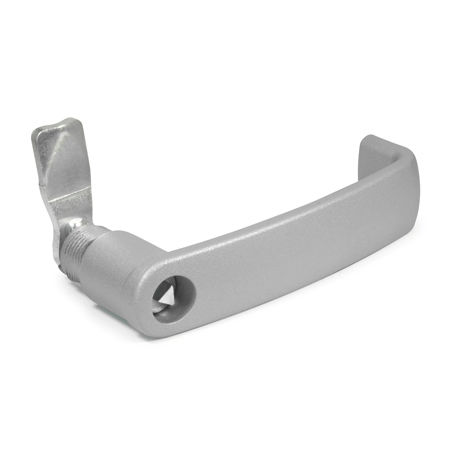

Key lock latch GN 115.7

camstainless steelrotary

Latches with cabinet "U" handles GN 115.7 are used when the application requires both a locking mechanism and a handle. A rotary movement limited to 90°, e.g. of the triangular spindle of type DK, shifts the key-bolt behind the door frame, with the bevelled key-bolt making the door closing action easier. The choice of 22 differently shaped catch plates gives a range A of 4 to 50 mm. Latches GN 115.7 are supplied with loosely enclosed lock.
