steel knurled screw / stainless steel / clamping
GN 653.2

Add to MyDirectIndustry favorites
Compare this product

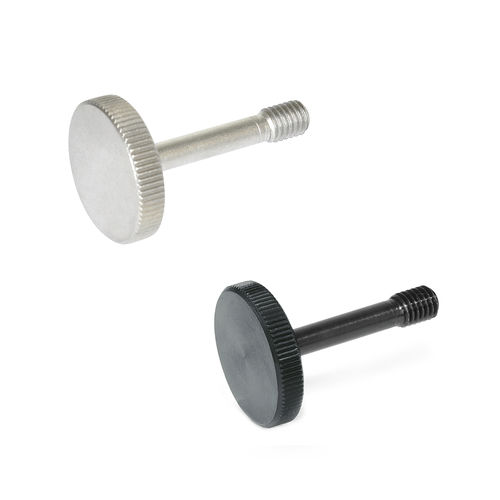

steel knurled screw / stainless steel / clamping steel knurled screw / stainless steel / clamping - GN 653.2
{{requestButtons}}

Characteristics

  • Materials:

    steel, stainless steel

  • Other characteristics:

    clamping

  • Diameter:

    Min.: 16 mm (1 in)

    Max.: 30 mm (1 in)

  • Length:

    Min.: 15 mm (0.59 in)

    Max.: 42 mm (1.65 in)

Description

Knurled screws GN 653.2 can be used for to prevent loss of the thumb screw, due to the d4 recessed portion of the stud.

When using, instead of a typical tapped and bore hole, it is necessary to provide tapped bores with a thread d1 on each of the two elements to be assembled. Additionally, a clearance bore of d5 on one or both sides must be cut.

Depending on the design and required clamping length a1 ... a3 of the component being attached, there are a number of assembly options as shown above.
