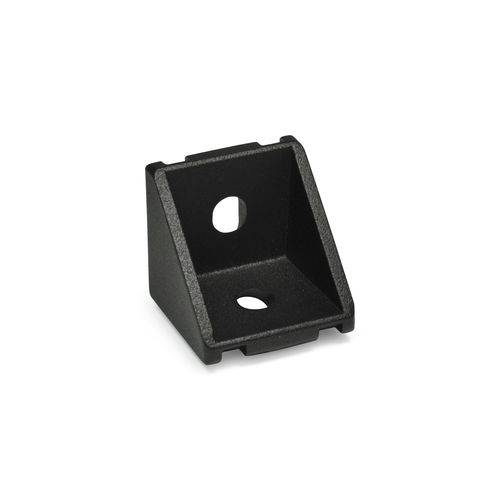

Profile assembly fastening bracket GN 961

aluminium90°with T slot

To mount angle pieces GN 961 in place, first insert the nuts of the assembly sets into the profile slot, then mount the angle piece with the fillister head screw. The guide step of the nut will position them in parallel and centered to the slot; the spring element prevents inadvertent sliding. For crossing profiles or when using the Angle pieces with components without a slot, the removable guide steps can simply be snapped off. After assembly, the cover caps are snapped into place via four lugs. They give the angle piece an attractive appearance and protect against dirt. Even after repeated use, the cover caps will remain firmly attached to the angle pieces, thanks to the elastic snap-type lugs. If required, they are also available individually under standard GN 963.
