2-post lift SMART 2.35 SL OTTO MM

3.5 tonelectromechanicalfor car

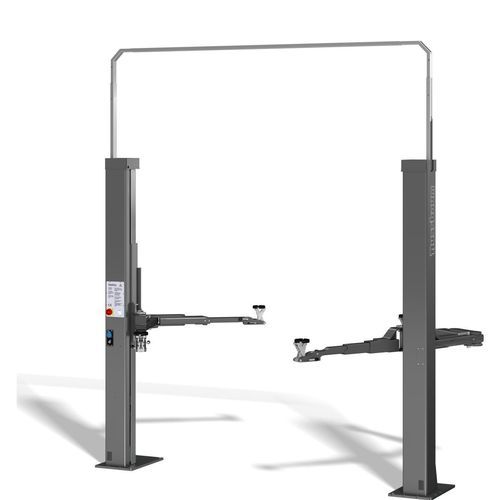

Brief description The electromechanical 2-post lift SMART LIFT 2.35 SL OTTO MM with spindle, 3500 kg load capacity and OTTO MM support arms features a triple safety system. Designed for continuous daily use in busy vehicle workshops, it fits workshops with low ceiling heights thanks to a minimum total height of 2892 mm and offers a flexible installation width. The cable connection between the columns can be routed through the floor or via a height-adjustable cable bridge mounted at the top between the columns.

Key features

• Lifting time: 46 seconds; lowering time: 40 seconds
• Load capacity: 3500 kg
• OTTO MM support arms reach the mounting points of a wide range of vehicle sizes
• Adjustable in width and height; low minimum space requirement
• Suitable for low ceiling heights with minimum total height 2892 mm
• Compressed air connection and 220 V socket integrated in the column as standard
• Patented Nussbaum NT and HyperFlow® technologies as standard
• Each unit is individually load-tested before shipment
• CE-Stop included

Scope of delivery

• Lift with adjustable cable bridge
• Asymmetrical support arms: two long double-jointed arms and one short double-telescopic arm
• Mini-Max mounting plates
• Energy set: E-set (230 V / compressed air) integrated in the control column

Installation requirements

• Foundation: 200 mm C20/25 standard reinforcement
• 12 dowels BM12-20/80/40 (depending on foundation, see manual)
• Electrical connection: 3 Ph, N + PE, 400 V, 50 Hz, 16 A slow fuse
• Compressed air connection for energy set (option)
• Unloading requirements on site

Carriage, construction and safety The spindle carrying-nut system consists of a rotating spindle and a low-wear lifting nut made of Nylatron®. A secondary safety nut under the carrying nut secures the system. Support arms are secured by an automatic locking device. The lifting nut can be inspected via a visible optical wear check. Columns and arms are welded, shot-peened and grey powder-coated for durable protection against dirt and weather.

Technical specifications

• Capacity: 3500 kg
• RAL colour: RAL 7016
• Lower swivelling height: 90 - 185 mm
• Front arm length: 980 - 600 mm
• Rear arm length: 995 - 1823 mm
• Lifting time: 46 sec.
• Lowering time: 40 sec.
• Lifting height: 2060 mm
• Total height: 2892 mm
• Total width: 3350 mm
• Clear distance between columns: 2470 - 2766 mm
• CE-Stop: yes
• E-Set: yes
• Electrical connection (Ph/V/Hz): 3 Ph, 400 V, 50 Hz
• Fuse protection: 16 Amp. slow-blow
• Engine power: 2 × 1.5 kW
