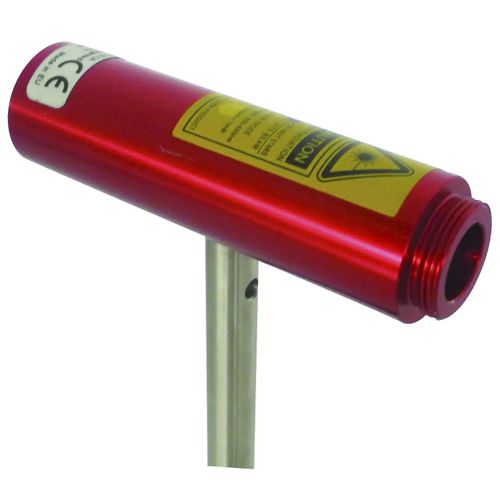

Pulsed laser diode 204282

solid-statered

• Magnetic or on a rod Ideal source suitable for both optical bench experiments, thanks to its removable Ø10 mm rod, and magnetic board experiments, thanks to the pre-mounted magnets. Requires the use of safety glasses. Not recommended for student use. Type: laser diode Output beam: 1 mm Beam diameter at 5 m: 6 mm Divergence: 1 mrad Operating temperature: 10 to 40 °C Polarization: linear Power supply: 6-9 V DC provided Tube dimensions: Ø25 mm - L90 mm Tube end: threaded M20 Support: rod Ø10 mm - L130 mm
