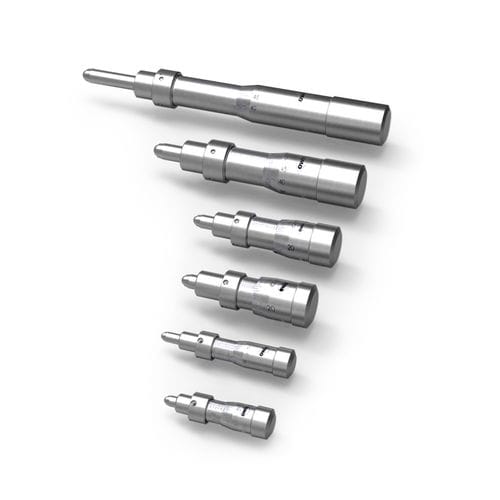

Micrometer head MS series

MS 6 •measuring range 6 / 12 mm •mounting thread M6 x 0.5 •spindle pitch 0.25 mm / axial load 25 N MS 9 •measuring range 10 / 15 mm •mounting thread M9 x 0.5 •spindle pitch 0.25 mm / axial load 30 N MS 12 •measuring range 25 / 50 mm •mounting thread M12 x 0.5 •spindle pitch 0.5 mm / axial load 100 N MS 10 •accuracy according to DIN 863 •indication range 12 mm and 15 mm, depending on the type •spindle pitch 0.10 mm •setting sensitivity about 200 nm per hand, approx. 20 nm with offset screwdriver
