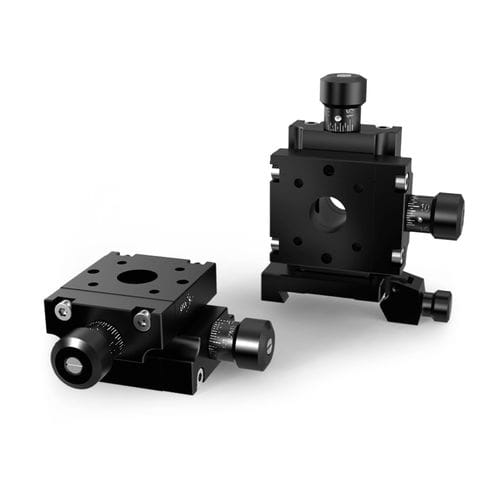

Linear stage MKT 30

XYmanual2-axis

•travel range 3 mm (±1.5 mm), with fine-thread spindle •aperture ø 7-10 mm CHARACTERISTICS •for use with SYS 40 •compact design •low mass •deformation-resistant aluminium •reflection-poor, black anodized ways of installing •on rail The miniature XY stages MKT 30 are made for adjustment tasks in smallest areas. With an edge length of only 30 mm, they provide an opening of 7-10 mm for the complete travel range of 3 mm (±1.5 mm). The MKT 30 are supplied with fine-thread spindles and a graduated button. They can bear equally large loads in both directions thanks to the forced return travel of the slide. The miniature XY stages with slides RT 40 (MKT 30-D10-RT40) may be used directly on rails S 40 LL in SYS 40.
