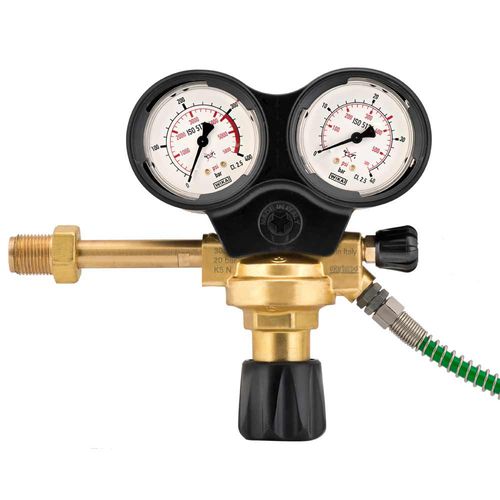

Gas pressure regulator and reducer MAXY PLUS

for nitrogenbrassindustrial

Standard UNI 9994 describes 4 maintenance stages for fire extinguishers (surveillance, control, revision, and final testing) and indicates the frequency with which they must be carried out. Maintenance technicians must always have a pressure reducer at hand to pressurise fire extinguishers with nitrogen. Oxyturbo have designed a professional reducer to be used with refillable nitrogen cylinders. Permits use of nitrogen up to 300 bar and enables outlet supply up to 20 bar. The spiral pipe has a 1/4 MG connection and is equipped with an open/close tap to facilitate the use of the reducer. • The body and cover originate from a brass mould • The body and cover originate from a brass mould • Gas flow adjustment knob • Two 63 mm Ø pressure gauges • 5 m Rilastollan spiral pipe (Ø 8×5) • Flashback arrestor valve on the open/close tap of the pipe
