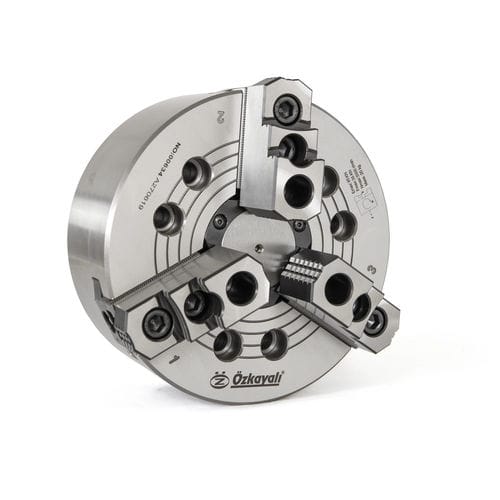

Power chuck CHS Series 3-jawsteel alloywith hard jaws
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 3-jaw
- Other characteristics
- steel alloy, with hard jaws
- Rotational speed
3,500 rpm, 4,500 rpm, 5,000 rpm, 6,000 rpm, 7,000 rpm
(21,991.15 rad.min-1, 28,274.33 rad.min-1, 31,415.93 rad.min-1, 37,699.11 rad.min-1, 43,982.3 rad.min-1)- Gripping force
36 kN, 56 kN, 85 kN, 110 kN, 143 kN
- Outer diameter
135 mm, 169 mm, 210 mm, 254 mm, 305 mm
(5 in, 7 in, 8 in, 10 in, 12 in)
Description
* The entire body of the power chuck is made of special alloy steel.The all body is made resistant to friction.
*Lubrication ducts are specially designed.In this way, the oil is distributed equally to all surfaces.and the abrasion on the surfaces is reduced to a minimum.
*Hardened and grinded surfaces provide longer life while maintaining accuracy and repeatability
PACKAGE INCLUDED
- Chuck and Mounting Bolts
- Soft Jaws (1 Set)
- Hard Jaws (1 Set)
- T-Nuts (1 Set
- T-Nuts Bolts
- Key for Chuck İnstallations
- Unhandled Lantern spindle nut
