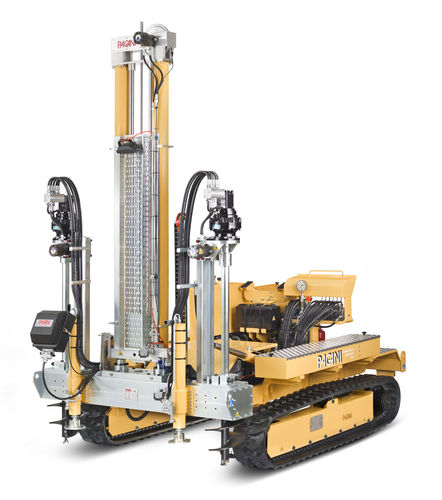

Penetrometer TG 73-200

Anchoring system automatic and telescopic The automatic and telescopic anchoring system installed on the mast - necessary to obtain sufficient reaction during static tests - allows the operator to fix the machine in a few intuitive and simple steps, also reducing insertion stress on the frame. High quality Fitted on a hydraulic-tracked carriage, which allows you to move even on the most marshy terrain. It can even be positioned on very steep slopes; thanks to the three stabilisers and the possibility of tilting the mast, a perfect verticality is guaranteed to allow rod insertion. High energy efficiency Around 78% of the energy is transmitted to the rods. Can be used by a single operator High quality and high performance in a penetrometer that can be used even by a single operator. Drastically reduced test times, thanks to the automatic anchoring system and the possibility of driving the rods and their liner tubes into the ground at the same time. Versatility Static tests can be carried out with Begemann bit (CPT), or with piezocone (CPTu) which can be implemented with the seismic module (S-CPTu). The hammer system for dynamic tests can be: Super Heavy (DPSH), Heavy (DPH) or Medium (DPM). The rotation head allows overcoming even the hardest terrains. Different types of samplers are also available to allow laboratory analysis of disturbed samples.
