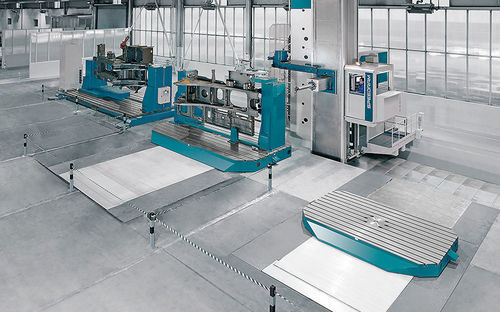

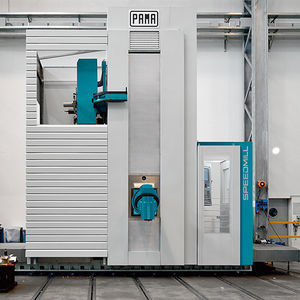

CNC boring mill SPEEDRAM HP series

horizontalfloorfor large workpieces

Overview
PAMA Speedram HP boring and milling machines combine maximum damping, high rigidity and elevated spindle speed with controlled thermal compensation to deliver precision on medium and large components where horizontal machining is preferable.

Type
Floor type horizontal boring and milling machine.

Design features
PAMA Speedram HP units adopt preloaded hydrostatic guides on the X and Y axes to maximize rigidity and vibration damping. The ram is guided inside the headstock by hydrostatic pads and is fitted with a boring bar using Direct Drive transmission. Both ram and boring bar incorporate feedback systems to compensate for thermal elongation, ensuring sustained precision and local vibration damping.

Customisation and configuration

• Wide range of standard or custom attachment heads
• Various milling and turning table options
• Multiple tool magazines and magazines for tools and attachment heads

Control systems
The range can be supplied with CNC controls from Siemens, Heidenhain or Fanuc.

Technical information (summary)
PAMA Speedram HP models offer Y travels up to 10,000 mm, ram travels between 1,200 mm and 2,500 mm and boring bar diameters from 120 mm to 180 mm.

Working area (mm)
X axis stroke (Column): 5000 ; +N x 1000
Y axis stroke (Headstock): 2000 - 10000
Z axis stroke (Ram): 1200 - 2500
W axis stroke (Boring spindle): 600 - 1000
Z+W axes stroke: 1800 - 3500

Headstock - Ram
Ram section: 430x430 - 600x600
Boring spindle diameter: 120 - 180
Spindle transmission: Direct Drive
Spindle power (S1): 66 - 108 kW
Spindle torque (S1): 1175 - 3900 Nm
Spindle speed: 3000 - 5000 rpm

Linear axes features
X, Y, Z, W axes rapid feed: up to 30000 mm/min

Technical specifications

• Machine type: Floor type horizontal boring and milling machine
• Hydrostatic guides: Preloaded on X and Y axes
• Ram guidance: Hydrostatic pads inside headstock
• Boring bar transmission: Direct Drive
• Thermal compensation: Feedback systems on ram and boring bar
• Y travels: up to 10 m
• Ram travels (Z): 1200 - 2500 mm
• Boring bar diameter: 120 - 180 mm
• X axis stroke (column): 5000 mm (modular +N x 1000)
• Y axis stroke (headstock): 2000 - 10000 mm
• W axis stroke (boring spindle): 600 - 1000 mm
• Z+W combined stroke: 1800 - 3500 mm
• Ram section options: 430x430 mm - 600x600 mm
• Spindle power (S1): 66 - 108 kW
• Spindle torque (S1): 1175 - 3900 Nm
• Spindle speed: 3000 - 5000 rpm
• Rapid feed (X,Y,Z,W): up to 30000 mm/min
• CNC options: Siemens, Heidenhain, Fanuc
