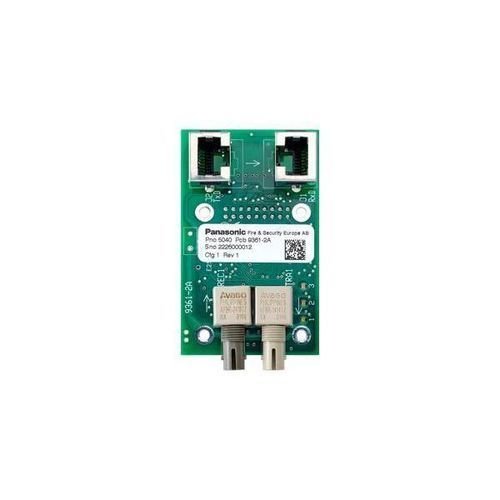

Network card 5040

Product Overview The EBLRing network board 5040 is designed for use with the EBL512 G3 system, enabling robust and flexible networking of up to 30 control units (CUs) in a ring topology. It supports both copper wire and optical fiber (multimode), allowing for mixed cable types between control units. The system is easily commissioned using only EBLWin software. Features - EBLRing network for up to 30 EBL512 G3 redundantly - Ring topology - For copper wire or optical fiber (multimode) - Possible to mix cable types as you wish between the control units - Up to 1,500 meters between 2 CUs with optical fiber - Up to 1,000 meters with copper wires - Only EBLWin needed, for easy commissioning Specifications - Operating temperature: -10 to +50 °C - Ambient humidity: < 95% - Dimensions: 79 x 56 x 29 mm - Weight: 28 g Technical characteristics / specifications - Product: EBLRing network board 5040 - Brand: Panasonic - Network type: Ring topology - Supported media: Copper wire, optical fiber (multimode) - Max distance (optical fiber): 1,500 meters between 2 CUs - Max distance (copper wire): 1,000 meters between 2 CUs - Max units: Up to 30 EBL512 G3 - Commissioning software: EBLWin - Operating temperature: -10 to +50 °C - Ambient humidity: < 95% - Dimensions: 79 x 56 x 29 mm - Weight: 28 g
