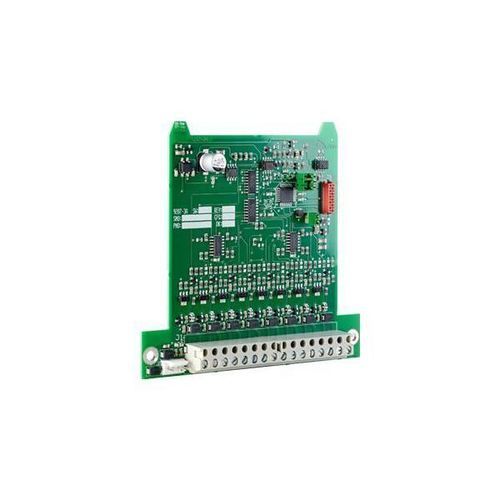

Interface expansion card 4580

Product Overview The 8 zones expansion board 4580 is designed for mounting in the EBL512 G3 system, enabling the integration of conventional detectors. It provides 8 inputs, each capable of supporting up to 32 detectors, and is compatible with both standard and EX detectors. The board offers features such as alarm delay, alert annunciation, 2-unit dependency, and disablement via time channel. Features - Expansion board for mounting in EBL512 G3 - For integration of conventional detectors - 8 inputs - Up to 32 detectors on each input - For standard detectors or EX detectors - Alarm delay available - Alert annunciation, 2-unit dependency and disablement available via time channel Specifications - Operating temperature: -5 to +40 °C - Ambient humidity: < 95% - Dimensions: 120 x 110 x 20 mm - Weight: 70 g Technical Characteristics / Specifications - Product type: Expansion board - Model: 4580 - System compatibility: EBL512 G3 - Number of inputs: 8 - Maximum detectors per input: 32 - Supported detectors: Standard or EX - Alarm delay: Yes - Alert annunciation: Yes - 2-unit dependency: Yes - Disablement via time channel: Yes - Operating temperature: -5 to +40 °C - Ambient humidity: < 95% - Dimensions: 120 x 110 x 20 mm - Weight: 70 g
