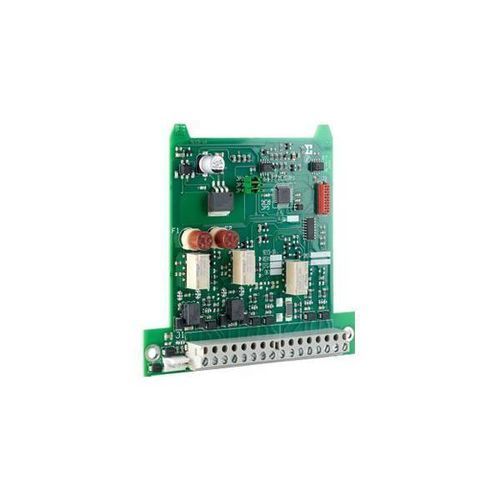

I/O card 4583

Product Overview The Inputs & Outputs Expansion Board 4583 is designed for mounting in the EBL512 G3 system. It is suitable for installations requiring a large number of inputs, such as external faults and technical events, and for use with conventional alarm devices. Features - Expansion board for mounting in EBL512 G3 - 2 programmable voltage outputs, 200 mA - 1 supervised programmable output - 5 programmable inputs - For installations where a lot of inputs are needed - external faults - technical events - etc - For installations with conventional alarm devices Specifications - Operating temperature: -5 to +40 °C - Ambient humidity: < 95% - Dimensions: Ø 120 x 110 x 20 mm - Weight: 70 g Technical characteristics / specifications - Product type: Inputs & Outputs Expansion Board - Model: 4583 - Mounting: For EBL512 G3 - Programmable voltage outputs: 2 (200 mA) - Supervised programmable output: 1 - Programmable inputs: 5 - Operating temperature: -5 to +40 °C - Ambient humidity: < 95% - Dimensions: Ø 120 x 110 x 20 mm - Weight: 70 g
