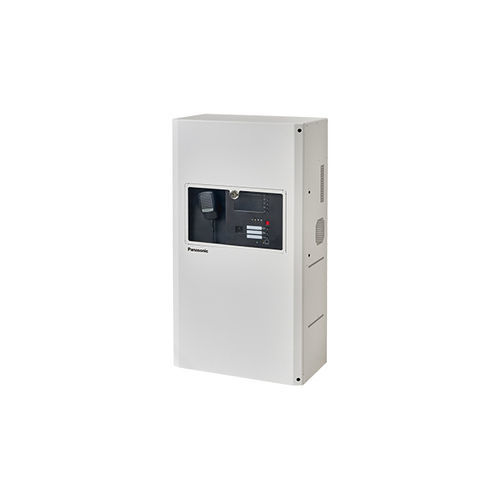

Battery backed public address system PAVA-2001L (N)

IPwith alarm4-channel

Overview
The PAVA-2001L (N) is a wall-mounted voice alarm controller integrating touchscreen control, a fireman’s microphone, amplifiers and power supply in a single cabinet. It simplifies system design and installation for buildings requiring EN 54-16-compliant voice alarm functionality.

Features

• Redundant amplifier architecture to maintain message delivery in case of amplifier failure
• Monitored TCP/IP communication for integration with Panasonic EBL fire alarm systems
• Easy integration with SIP and IP intercom systems
• Tested and approved to EN 54-16 and EN 54-4; CPR: 1438-CPR-1146

Specifications (summary)

• No. of speaker lines: 4 (2 x AB)
• Total system load: 320 W rms
• No. of amplifiers / power: 2 × 160 W (redundant)
• No. of simultaneous messages (PAVA-2001L(N)): 1
• Battery capacity: 4 × 45 Ah
• Operating conditions: -5 to +40 °C; 5% to 95% RH (non-condensing)
• Dimensions: 797 × 442 × 241 mm
• Weight: 30 kg
• Ingress protection: IP30

Wall mounted units - comparison table
Models: 2001L/LN | 4001L/LN | 4002L/LN | 8002L/LN | 8003LN
No. of speaker lines: 4 (2 x AB) | 8 (4 x AB) | 8 (4 x AB) | 16 (8 x AB) | 16 (8 x AB)
Total load of the system: 320 W rms | 640 W rms | 640 W rms | 640 W rms | 1500 W rms
No. of amplifiers / power: 2 x 160 W | 2 x 320 W | 2 x 320 W | 2 x 320 W | 3 x 500 W
Redundant Amplifier: Yes (all models)
No. of simultaneous messages: 1 | 1 | 2 | 2 | 3
Battery capacity: 4 x 45 Ah | 4 x 45 Ah | 4 x 45 Ah | 4 x 65 Ah | 4 x 65 Ah
Ingress protection: IP30 (all models)
Operating condition: -5 to +40°C / 5% to 95% humidity with no condensation (all models)
Gross weight (kg): 30 | 34 | 34 | 33 | 31
Dimensions (H x W x D): 797 x 442 x 241 mm (all models)

Technical specifications

• Number of speaker lines: 4 (2 x AB)
• System total load: 320 W rms
• Amplifiers: 2 × 160 W (redundant amplifier architecture)
• Simultaneous messages (PAVA-2001L(N)): 1
• Battery configuration: 4 × 45 Ah
• Integrated components: touchscreen control, fireman’s microphone, amplifiers and power supply in single wall-mounted cabinet
• Network/Integration: Monitored TCP/IP communication with Panasonic EBL fire alarm system; SIP and IP intercom integration
• Standards and approvals: EN 54-16, EN 54-4; CPR: 1438-CPR-1146
• Environmental: Operating -5 to +40 °C; humidity 5% to 95% (non-condensing)
• Mechanical: Dimensions 797 × 442 × 241 mm; Weight 30 kg
• Ingress protection: IP30
