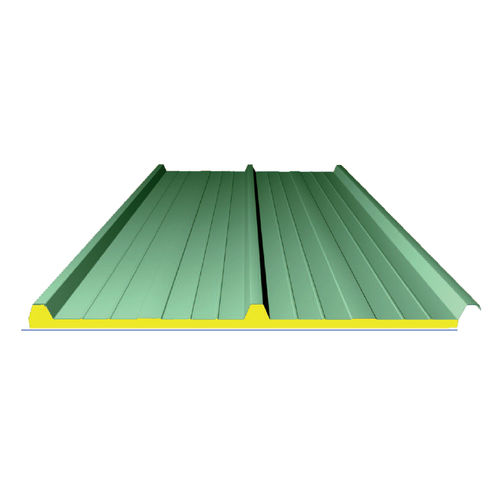

Polyurethane core sandwich panel Ais Agro 3G

steel facing

• Maximum length - 16.400 mm • Useful width - 1000 mm • Thickness - 30, 40, 50, 60, 80, 100 mm • Thickness of the sheets - from 0.32 to 0.60 mm • Insulating material - PUR /PIR, density 36-40kg/m3 +- 10% • Fire classification - PND The AIS AGRO 3G Panel is a roof sandwich panel, consisting of two galvanized steel plates, the upper one has 3 ribs (two lateral and one central to provide greater mechanical resistance) and a lower one reinforced with glass fibre, white and smooth, which are bonded in a continuous manufacturing process to a hard core of polyurethane (PUR) or polyisocyanurate (PIR) foam at a density of 36-40 kg/m3. The panel is designed for roofs with a minimum slope of 5%, although over 7% is recommended, on any metal, wood or concrete support. The flange of the integrated lateral overlap in a false rib forms the joint between two panels, enables rapid fitting, watertight assembly and good appearance of the roof. There is a choice of 2 designs for the lower lateral joint, a traditional one with a polyester flange overlap, or the new “auxiliary H profile in PVC”, available on request. We have all the auxiliary fastening elements required, screws, Capelotti joint covers and trims for the AGRO 3G Panel, compatible polycarbonate sheets for natural light and static aerators for ventilation. As with all our panels, the AIS AGRO 3G Panel is customisable by selecting the type of cladding, thickness and colour of the upper face. Please see the technical data sheet for further information.
