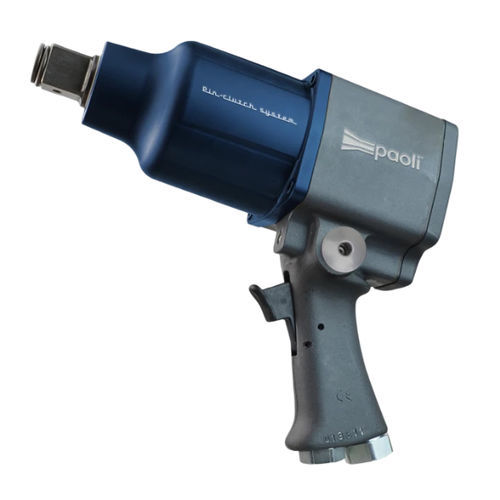

Pneumatic impact wrench DP 247

1"for heavy-duty applicationspistol

Product description
1" heavy-duty impact wrench DP 247 equipped with an oil-bath reinforced Pin‑Clutch impact mechanism that minimizes internal friction and improves heat dissipation to extend service life. Designed for industrial bolting on heavy equipment. Includes side handle and pistol-style grip; air exhaust routed through the handle.

Highlights

• Impact mechanism type: Pin‑Clutch (oil-bath)
• Anvil / drive type: with ring, with hole
• Air exhaust direction: handle
• Impact mechanism lubrication: oil

Available Versions

• Short anvil 1"
• Medium anvil 1"
• Long anvil 1"

Applications

• Railways
• Heavy engineering and construction
• Heavy vehicles: trucks, buses and industrial vehicles
• Mining
• Shipbuilding
• Oil & Gas
• Petrochemical
• Wind power production
• General industry

Technical specifications

• Weight: 8.3 kg (18.3 lbs)
• Length: 282 mm (11.1 in)
• Maximum torque: 3000 Nm (2210 ft-lb)
• Operating pressure: 6.3 bar (91 psi)
• Connection: 1/2" BSP
• Anvil drive: 1"
