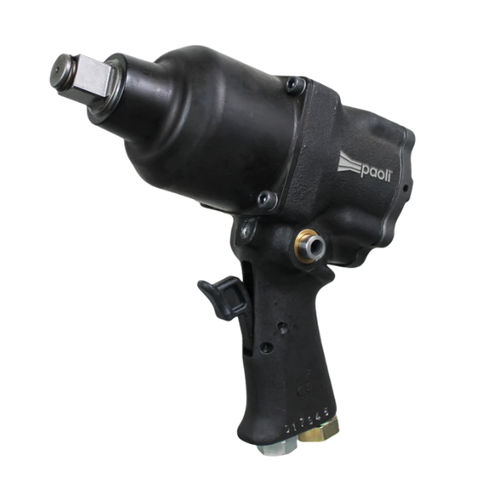

Pneumatic impact wrench DP 196

3/4"for the automotive industrytrolley-mounted

Description
3/4" impact wrench integrating a three-jaw impact mechanism that ensures consistent impact power over time. Designed for installation and use on MWS trolleys and suited to maintenance tasks on commercial and light vehicles.

Highlights

• Impact mechanism type: 3 jaws
• Anvil type: with ring, without hole
• Air exhaust direction: handle
• Impact mechanism lubrication: grease
• Suitable for use on MWS trolleys

Available Versions

• Short anvil 3/4"
• Long anvil 3/4"

Applications

• Commercial and light vehicles: vans, cars, bicycles
• Various general workshop and service operations

Technical Details

• Weight: 4.9 kg (10.8 lbs)
• Size: 218.2 mm (8.6 in)
• Maximum Torque: 1300 Nm (960 ft-lb)
• Operating Pressure: 6.3 bar (91 psi)
• Connection: 3/8" BSP

Specifications

• Weight: 4.9 kg (10.8 lbs)
• Size: 218.2 mm (8.6 in)
• Maximum Torque: 1300 Nm (960 ft-lb)
• Operating Pressure: 6.3 bar (91 psi)
• Connection: 3/8" BSP
