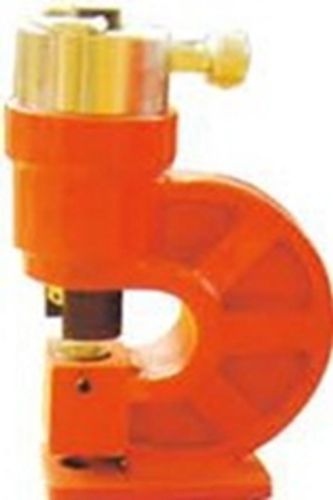

Manual punching machine PS-YC-21.5*10hydraulicbarpunching
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Drive type
- hydraulic
- Product handled
- bar
- Associated function
- punching
- Other characteristics
- portable
- Pressing force
630,000 N
- Plate thickness
10 mm
(0.39 in)- Part weight
23.5 kg
(51.81 lb)
Description
HYDRAULIC PUNCHING MACHINE PS-YC-21.5*10
Performance and characteristics
- Operation is faster than drilling. Punching takes just a few seconds. Punches holes without burrs. The pressing mechanism design ensures punching precision without offset.
- Uses a hydraulic pump for power, allowing operation on-site without external power. Especially suitable for field operations.
Reload | Application of maximum thickness | Mold specification | Weight
63MPa | 10mm | φ11.5, φ13.5, φ15.5, φ17.5, φ19.5, φ21.5 | 23.5kg
- Availability: Usually ships within 4 weeks
Technical Specifications / Features
- Model: PS-YC-21.5*10
- Maximum punching thickness: 10mm
- Mold specifications: φ11.5, φ13.5, φ15.5, φ17.5, φ19.5, φ21.5
- Weight: 23.5kg
- Hydraulic pressure: 63MPa
