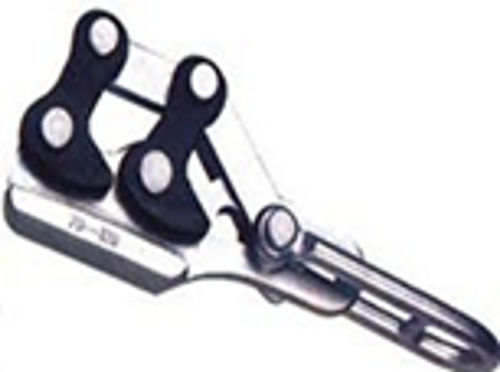

Ground clamp PS- SKDP series

WIRE CLAMPING DEVICE Eccentric dual-cam come along clamps for earth wire - Performance and characteristics. - Suitable for cable tower cable adjustment and wire tight line. Model | Applicable of steel strand | Rated load | Maximum opening | Weight --- | --- | --- | --- | --- PS- SKDP-1 | GJ25-70mm² | 10KN | 11mm | 2.3kg PS- SKDP-2 | GJ50-70mm² | 20KN | 13mm | 2.7kg PS- SKDP-3 | GJ70-120mm² | 30KN | 15mm | 3.7kg - Availability: Usually ships within 4 weeks - Brand: Paprsky - Category: Cable Clamp & Grip - SKU: (not specified) - UPC: (not specified) - Currency: USD - Product rating: 0 of 5 (No reviews yet) - Model Number Options: PS- SKDP-1, PS- SKDP-2, PS- SKDP-3 - Related Products: RACK & WIRE CLAMPING DEVICE TENSION RACK, INSULATED WIRE CABLE STRIPPER PS-CS-1, PNEUMATIC LOCKOUT DEVICE PS-LOTO-PDL, CABLE LOCKOUT DEVICE PS-LOTO-ECL, FUSE LOCKOUT DEVICE - 04 PS-LOTO-FUSE4L Technical Specifications / Features: - Type: Eccentric dual-cam come along clamp - Application: Earth wire, cable tower cable adjustment, wire tight line - Model PS- SKDP-1: For GJ25-70mm² steel strand, 10KN rated load, 11mm max opening, 2.3kg weight - Model PS- SKDP-2: For GJ50-70mm² steel strand, 20KN rated load, 13mm max opening, 2.7kg weight - Model PS- SKDP-3: For GJ70-120mm² steel strand, 30KN rated load, 15mm max opening, 3.7kg weight - Availability: Usually ships within 4 weeks
