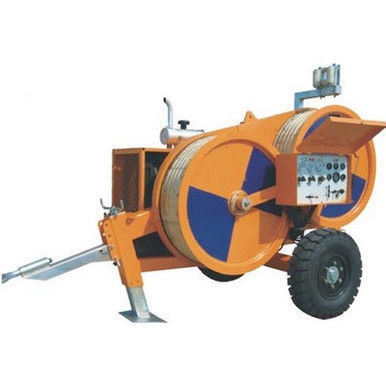

Nylon cable puller-tensioner PS-SA-YZ40A

HYDRAULIC TENSIONER PS-SA-YZ40A Performance and characteristics - Maximum tension (KN): 40 - Continuous tension (KN): 35 - Maximum speed (km/h): 5 - Bull Wheel bottom of groove diameter (mm): 1200 - Number of grooves: 5 - Maximum pullback (KN): 40, Maximum Speedback (km/h): 3 - Maximum suitable conductor diameter (mm): 32 Engine - Power/speed (kw/rpm): 51/2500 - Dimensions: 3400*1500*2400 - Weight (kg): 2800 - Uses: It is adequate to tension releasing various conductor and earthwires. FEATURES: - Bull wheel with wearproof MC nylon lining segments - Infinitely variable tension control and constant tension conduct (stringing) - It adapts Italian reducer. - Spring applied hydraulic released brake automatically in case of hydraulic failure to ensure safety. Main component - Engine: Domestic water coiled engine - Main pump/monitor: Rexrolh - Reducer: RR (Italian), Radiator: AKG - Hydraulic instrument: WIKA It can choose to import endline. Technical Specifications / Characteristics: - Maximum tension: 40 KN - Continuous tension: 35 KN - Maximum speed: 5 km/h - Bull wheel groove diameter: 1200 mm - Number of grooves: 5 - Maximum pullback: 40 KN - Maximum speedback: 3 km/h - Maximum suitable conductor diameter: 32 mm - Engine power/speed: 51 kW / 2500 rpm - Dimensions: 3400 x 1500 x 2400 mm - Weight: 2800 kg - Bull wheel with wearproof MC nylon lining segments - Infinitely variable tension control - Constant tension stringing - Italian reducer - Spring applied hydraulic released brake for safety - Engine: Domestic water coiled engine - Main pump/monitor: Rexrolh - Reducer: RR (Italian) - Radiator: AKG - Hydraulic instrument: WIKA
