Off-road tractor PS-TGC

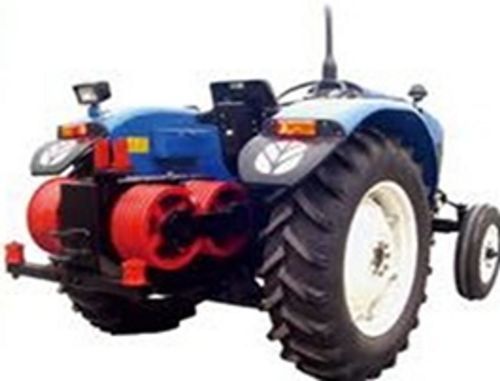

Off-Road Tractor PS-TGC Series Performance and Characteristics: - The SH-500 tractor is converted for off-road capability with a mechanical shaft and double brake, ensuring flexible operation and high work efficiency. - Suitable for lifting or traction wire. - Equipped with its own walking part. - Can be fitted with a tow case for transporting cement poles and small tools. - Features three reels on both sides, with a large diameter double side grooved reel for traction without twisting the wire rope. - The belt groove effectively protects the wire rope from twisting and damage. - The other side features a 'V' shaped drum mainly for traction of ordinary wire rope or nylon rope. Models and Specifications: - PS-TGC-28: Rated output 50KN, Weight 1800kg - PS-TGC-50: Rated output 50KN, Weight 2260kg - PS-TGC-80: Rated output 80KN, Weight 2600kg Gear Specifications: - PS-TGC-28: Traction (KN) and Speed (m/min) across various gears - PS-TGC-50: Traction (KN) and Speed (m/min) across various gears - PS-TGC-80: Traction (KN) and Speed (m/min) across various gears Availability: Usually ships within 4 weeks Technical Specifications / Features: - Off-road mechanical shaft, double brake - Flexible operation, high work efficiency - For lifting or traction wire - Own walking part - Can be equipped with tow case for cement pole and small tools - Three reels on both sides, double side grooved for traction without twisting wire rope - Belt groove protects wire rope from twisting and damage - 'V' shaped drum for ordinary wire rope or nylon rope - Models: PS-TGC-28, PS-TGC-50, PS-TGC-80 - Rated output: 50KN (PS-TGC-28, PS-TGC-50), 80KN (PS-TGC-80) - Weight: 1800kg (PS-TGC-28), 2260kg (PS-TGC-50), 2600kg (PS-TGC-80)
