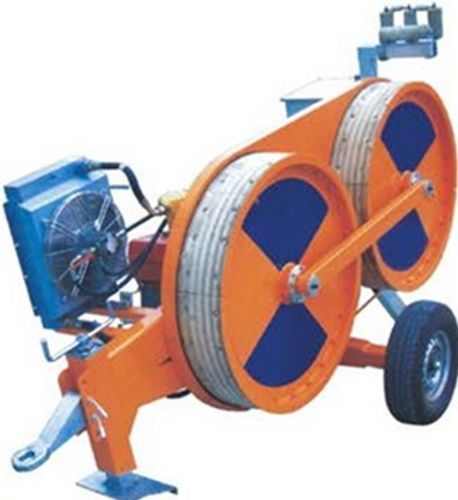

Hydraulic bolt tensioner PS-SA-YZ30A

HYDRAULIC TENSIONER PS-SA-YZ30A Performance and characteristics - Maximum tension (KN): 30 - Continuous tension (KN): 25 - Maximum speed (km/h): 5 - Bull Wheel bottom of groove diameter (mm): 1200 - Number of grooves: 5 - Maximum pullback (KN): 20 - Maximum suitable conductor diameter (mm): 32 - Engine power/speed (kw/rpm): 11/2200 - Weight (kg): 1400 Uses: Suitable for tension releasing various and earth wires and also useful for tension releasing OPEG optic cable compounded earth wire and ADSS self-stand optic cable etc. FEATURE - Bull wheel with wearproof MC nylon lining segments - Infinitely variable tension control and constant tension conduct (stringing) - Adapt Italian reducer - Spring applied hydraulic released brake automatically in case of hydraulic failure to ensure safety Main component - Engine: Domestic water coiled engine - Main pump/monitor: Branded pump and monitor - Reducer: RR (Italian) - Radiator: AKG - Hydraulic instrument: WIKA Availability: Usually ships within 4 weeks Technical Specifications / Features - Model Number: PS-SA-YZ30A - Brand: Paprsky - Maximum tension: 30 KN - Continuous tension: 25 KN - Maximum speed: 5 km/h - Bull Wheel diameter: 1200 mm - Number of grooves: 5 - Maximum pullback: 20 KN - Maximum suitable conductor diameter: 32 mm - Engine power/speed: 11 kW / 2200 rpm - Weight: 1400 kg - Reducer: RR (Italian) - Radiator: AKG - Hydraulic instrument: WIKA
