Air-operated conveyor Airveyor

horizontaltransportfor materials handling

Overview
Paramount Airveyors provide clean, efficient and low-maintenance conveying for large volumes of waste materials including paper, corrugated and solid board. The Airveyor uses a shallow horizontal air track to transport waste along the conveyor to a ducting pickup point. Driven by a high-efficiency centrifugal fan, the system has no moving conveying parts such as belts or rollers, reducing mechanical failure risk and downtime.

Key features

• No moving parts on the conveying bed (no belts, no rollers).
• High-efficiency centrifugal fan supplies the air cushion for conveyance.
• Operators can safely walk on the air track while the conveyor is in operation.
• Flexible installation: in-trench installation or mounted on rollers at ground level.
• Ducting quick-release fittings for easy access and maintenance.
• Fans can be located remotely if space around the Airveyor is restricted.

Installation & operation
The Airveyor is driven by a centrifugal fan which delivers air beneath the air track, ensuring even distribution of the air cushion along the full conveyor length. Units may be installed in a trench under equipment or mounted on rollers at ground level. Ducting quick-release fittings provide fast access for inspection and service. Remote fan placement is supported where floor space is constrained.

Applications

• Ideal for installations with limited space and for short convey distances.
• Recommended for printers, slotters, die-cutters and creasing machines, and similar waste-generating equipment.

Product variants & gallery

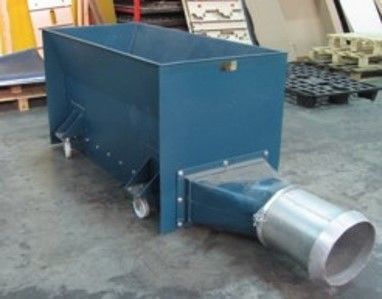

• Mobile Airveyor — quick-release duct connection (mobile variant pictured).
• Mobile Airveyor — fan-fed mobile variant (pictured).
• Fixed Airveyor — fixed installation variant (pictured).

Technical specifications

• Suitable materials: paper, corrugated board, solid board and similar waste materials.
• Conveying principle: shallow horizontal air track (air cushion transport).
• Drive: high-efficiency centrifugal fan (can be remote-mounted).
• Maintenance: minimal due to absence of belts, rollers and moving conveying parts.
• Installation options: in-trench installation or ground-level on rollers.
• Access: safe walking on air track during operation; ducting quick-release fittings for maintenance access.
• Best suited for: short convey distances and space-restricted environments.
