Overview
Paramount Chopper Conveyor Fans are heavy‑duty units engineered to cut and convey a wide range of industrial materials. Developed over 25 years, they combine a paddle‑blade impeller cutting system with robust construction to support continuous operation and reduced maintenance.

Construction and materials
The impeller is manufactured from non‑alloy structural grade steel (not mild steel) for improved durability. Each paddle blade is fitted with a bolted 6 mm thick low‑carbon manganese hardened steel cutting blade on its leading edge to resist impact and extend service life.

Impeller, shaft and bearings
The impeller is mounted on a large‑diameter shaft designed for heavy‑duty environments. The shaft is supported by heavy‑duty sealed‑for‑life bearings to minimise maintenance and enhance operational reliability.

Inlet and cutting control
Material enters the fan through an adjustable inlet that alters cutting characteristics to optimise conveying performance. For continuous trim applications an inlet cone with anti‑roping knives prevents material wrapping around the impeller. For highly abrasive materials the inlet cone can be case‑hardened to increase protection and service life.

Materials handled & applications
Paramount Chopper Conveyor Fans handle paper, tissue, corrugated board, aluminium foil, plastics, scrap cans and flock. Typical sectors include printing, packaging and recycling operations where cutting and conveying are combined.

Energy efficiency & controls
To enable system tuning and potential energy savings, fans can be supplied with Variable Speed Drives (VSD). Using survey data in bespoke software, expected energy savings can be evaluated for new or retrofitted VSD installations.

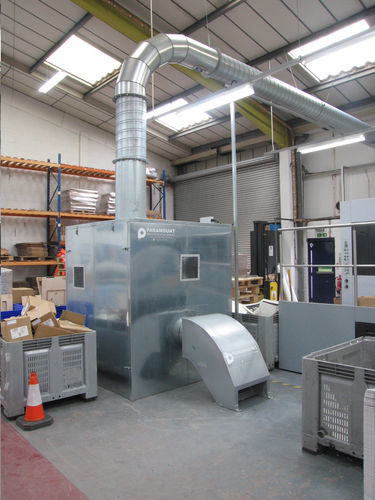

Noise control & enclosures
For noise‑sensitive installations Paramount can supply acoustic enclosures, inlet and outlet silencers and sound‑proofing for ducting to reduce operational noise levels.

Spares & service
Detailed manufacturing records allow Paramount to supply spare parts typically from stock, ensuring quick access to replacements and minimised downtime.

Specifications

• Paddle‑blade impeller construction.
• Impeller material: non‑alloy structural grade steel (not mild steel).
• Cutting blade: 6 mm thick, low‑carbon manganese hardened steel, bolted to leading edge of each paddle.
• Large‑diameter shaft designed for heavy‑duty environments.
• Heavy‑duty sealed‑for‑life bearings to minimise maintenance.
• Adjustable inlet to vary cutting characteristics and optimise conveying.
• Optional inlet cone features: anti‑roping knives for continuous trim and case‑hardening for abrasive applications.
• Capable of handling: paper, tissue, corrugated board, aluminium foil, plastic, scrap cans, flock.
• Option to fit Variable Speed Drive (VSD) for energy savings and system tuning.
• Acoustic enclosures, inlet/outlet silencers and duct sound‑proofing available.
• Spares typically available from stock supported by detailed manufacturing records.
