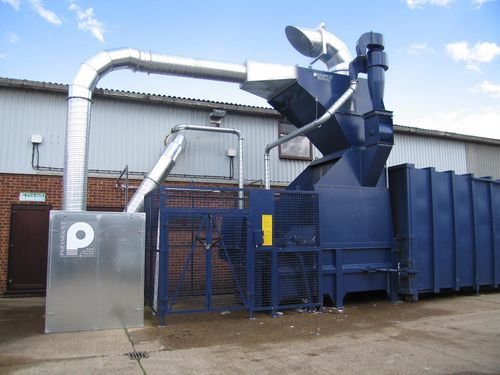

Cyclone dust collector Cyclone

Overview
The Paramount Cyclone is a cyclonic separation unit designed to remove waste and dust from an airstream without the need for filter media. Using vortex effects and gravity, the unit separates particulates from conveyed air with no internal moving parts, making it suitable for many industrial dust-handling applications.

Design and Principle
The Paramount Cyclone consists of an upper circular body, a top tangential inlet, a lower cone and an axial thimble that forms the clean-air outlet. Tangential introduction of dust-laden air creates a strong rotational flow; centrifugal forces drive heavier particulates outward toward the wall and down the cone for discharge.

Operation
Particulates centrifuge outward and move down the cyclone wall into the bottom discharge, where material can be collected in a bin, compactor or briquetter. The core air reverses direction and rises through the axial thimble as cleaned air, which can be further processed or exhausted.

Construction and Features
The internal surface is fully smooth and purposely excludes spiral guides to avoid entanglement of light webbing trims. The absence of moving internal components reduces maintenance needs and improves operational reliability.

Optional Additions

• Balance fan on the clean-air outlet to assist airflow control (recommended in some installations).
• External acoustic cladding with sound-absorbing materials for noise-sensitive environments.
• Downstream filtration (including HEPA) if fine particulates remain and additional cleaning is required prior to recirculation.

Applications
The Paramount Cyclone is suitable for industrial settings requiring a low-cost, reliable means of separating dust and particulates, including handling of light webbing trims and general waste collection in production processes.

Caractéristiques / spécifications techniques

• Type: Cyclonic (vortex) separation unit
• Key components: upper circular body, top tangential inlet, lower cone, axial thimble (clean air outlet)
• No moving internal parts
• Interior: smooth (no spiral guides) to improve handling of light webbing trims
• Discharge: bottom discharge to collection bin, compactor or briquetter
• Optional: balance fan on clean air outlet
• Optional: external sound absorption cladding
• Optional downstream filtration: HEPA or other filters for fine particulates
• Benefits: low cost, reliable operation, minimal maintenance
