Overview
The Paramount Rotary Separator is a rotary separation device designed to remove waste from conveying air while minimising system pressure drop. Unit sizing is based on extraction air volume and the type and volume of waste. The design maintains separation performance within operational air and waste volume variations.

How it works
High-performance rubber strips mounted on the tips of an internal rotating paddle continuously scour a heavy-duty perforated cylindrical separation screen. This action clears waste from the screen while allowing conveying air to pass with minimal pressure drop. The rubber strips create an airtight seal between the upper and lower sections. The rotating paddle conveys separated waste to the discharge side and permits air to pass through the top without disturbing the natural gravitational fall of the waste into a bin or compactor.

Construction and Drive
The unit is fabricated from 3 mm-thick steel and pressure tested before dispatch to verify integrity. A high-performance British-manufactured motorised gearbox drives the paddle assembly. The gearbox is mounted on shock-absorbing rubber bobbins and includes an integral motor cut-out for protection and reliable operation.

Applications and Performance
The Paramount Rotary Separator offers a compact footprint compared with traditional separators and rotary valves, making it suitable where height is constrained. It handles a range of difficult wastes including light materials (e.g., tissue) and static-charged waste, accepts multiple feed lines without imbalance, and operates smoothly under heavy loads while minimising system pressure drop.

Gallery captions

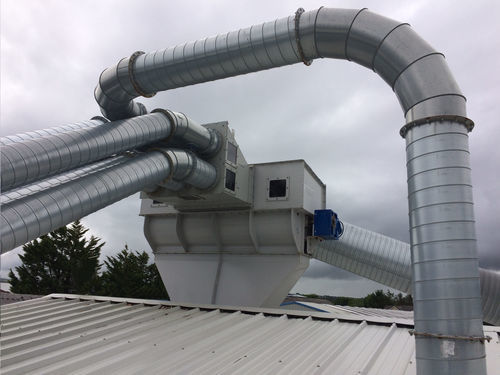

• Multiple large feeds to Rotary Separator

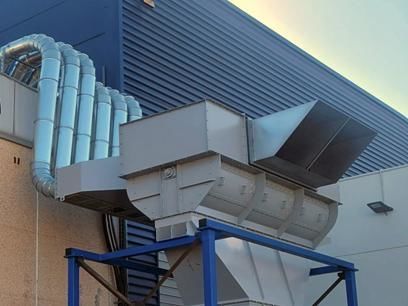

• Rotary Separator over skip
• Cut away section showing flows
• Rotary Separator viewing windows
• Rotary Separator
• Rotary Separator (alternate images)

Technical specifications

• Unit constructed from 3 mm-thick steel
• Pressure tested before dispatch
• High-performance rubber strips on tips of internal rotating paddle to scour cylindrical heavy-duty perforated separation screen
• Internal rotating paddle assembly conveys waste to discharge side
• Design allows conveying air to pass through top without disturbing gravitational fall of waste
• High-performance British-manufactured motorised gearbox
• Gearbox mounted on shock-absorbing rubber bobbins to reduce vibration
• Gearbox fitted with integral motor cut-out for protection
• Compact design suitable where height is constrained
• Minimises system pressure drop
• Capable of handling multiple feed lines without going out of balance
• Suitable for difficult wastes including light materials (e.g., tissue) and static-charged waste
• Unit size calculated based on extraction air volume and waste volume/type
