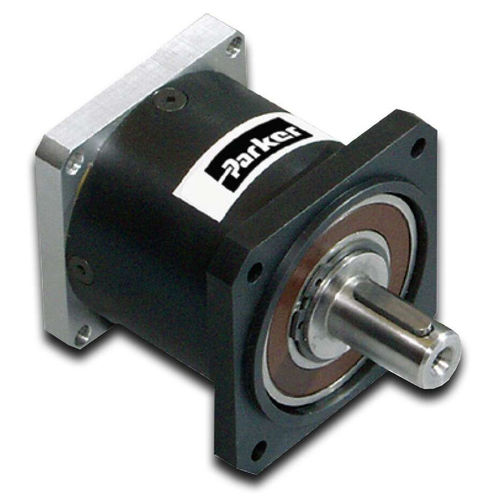

Precision gearbox PE Series
planetarycoaxial200 - 500 Nm

precision gearbox
precision gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm
Performance
precision, low-backlash, high-torque, high-speed
Applications
for automation, machines, for food industry machinery
Other characteristics
industrial, for robotics, for automotive applications, for packaging machines
Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 13,000 rpm (81,681.41 rad.min-1)

Description

The standard precision PE-series inline planetary gearheads are available in 40-155mm frame sizes and offer high torque, low backlash, high input speeds and a small package size with an excellent price/performance ratio. The PE-series planetary gearbox is the perfect economy gearbox for all applications where considerably low backlash is not of vital importance. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • Frame Sizes: 40 - 155mm • Ratio Options: 3:1 - 64:1 • Backlash: to < 7 arc-minutes • Efficiency: up to 97% • Quiet Operation: less than 70db • High Input Speeds: up to 18 000 RPM • Excellent price/performance ratio • High output torques • High quality (ISO 9001) • Any fitting position possible • Simple motor fitting • Life time lubrication • Direction of rotation equidirectional • Balanced motor pinion Applications: • Industrial Equipments • In-Plant / Automotive Industry Equipments • Robotics • Special Machines PERFORMANCE CHARACTERISTICS PERFORMANCE: Standard Precision CONFIGURATION: Inline GEAR GEOMETRY: Planetary FRAME SIZE: 60mm | 90mm | 115mm BACKLASH: < 8 to < 18 arc-min RATED TORQUE: 28 ... 260 Nm 248 ... 2300 lb-inch RADIAL LOAD CAPACITY: 340 ... 2400 N 76 ... 540 lb RATIO: 3, 4, 5, 8, 9, 12, 15, 16, 20, 25, 32, 40, 60, 64, 80, 100, 120, 160, 200, 256, 320, 512:1

Catalogs

PE Series
PE Series
12 Pages
