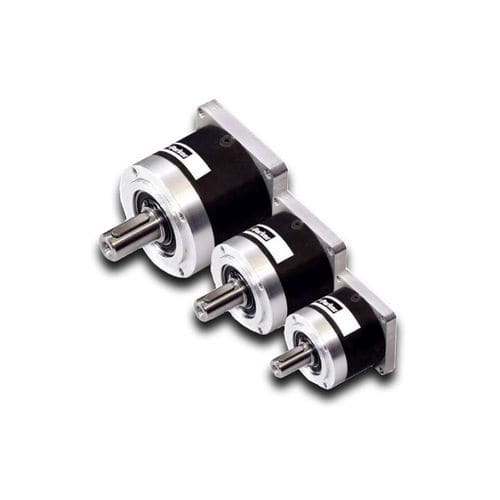

Planetary gearbox PTN series
coaxialsolid-shaft10 - 20 Nm

planetary gearbox
planetary gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm
Performance
precision
Other characteristics
linear
Rotational speed

4,000 rpm
(25,132.74 rad.min-1)

Gear ratio

4 unit, 8 unit, 25 unit

Description

The PTN-series planetary gearheads are suitable for use in combination with Parker LCB linear actuator series. Available in 60-80mm frame sizes, the PTN-series Economy Planetary Gearbox was developed for LCB linear actuator applications where low backlash is not required. PTN-Series Economical Inline Planetary Gearheads - Features: • Frame Sizes: 60 - 80mm • Ratio Options: 4:1, 8:1 and 25:1 • Backlash: to < 25 arc-minutes • Efficiency: up to 96% • Quiet Operation: less than 65db • Input Speeds: up to 4000 RPM • Space-saving design • High output torque • Fast and easy motor mounting • Direction of rotation equidirectional
