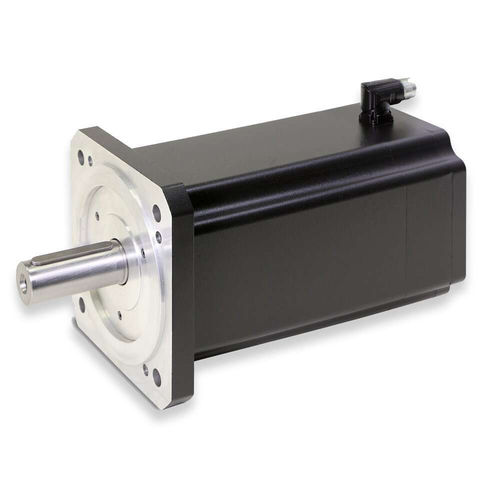

Low-inertia servo motor SMB SeriesACbrushless230 V

low-inertia servo motor
low-inertia servo motor
Add to favorites
Compare this product
indicative price

Characteristics

AC/DC
AC
Type
brushless
Voltage
230 V, 400 V
Other characteristics
for robotics, IP65, IP67, air-cooled, food, for sewing machines, for the pharmaceutical industry, packaging machine, permanent magnet, 8-pole, low-inertia
Torque

Max.: 60 Nm (44.2537 ft.lb)

Min.: 0.19 Nm (0.1401 ft.lb)

Power

Max.: 9.4 kW (12.78 hp)

Min.: 0.1 kW (0.136 hp)

Rotational speed

Max.: 7,500 rpm (47,123.89 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Description

Available in 40-170mm frame sizes, SMB motors use innovative salient pole technology to achieve low rotor inertias and high dynamic performance. SMB motors have resolver feedback. The SMB series brushless servo motors have been designed to combine cutting-edge technology with extremely high performance. Utilising innovative ‘Salient Pole' technology, featuring Neodymium-Iron-Boron magnets uniquely encapsulated to the motor shaft, SMB synchronous servo motors can achieve very high accelerations and withstand high overloads without any risk of demagnetisation or detachment of the magnets. Additionally the motor's dimensions are considerably reduced, offering significant advantages in terms of specific torque and dynamic performance. Compared to traditional-technology brushless servo motors, the specific torque of SMB serrvo motors is approximately 30% higher and rotor inertias are extremely low, making it especially suited to highly dynamic applications. The SMB brushless servo motor series offers a high degree of flexibility thanks to its extensive range of motor frame configurations, flange and shaft options, feedback devices and winding options. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma
