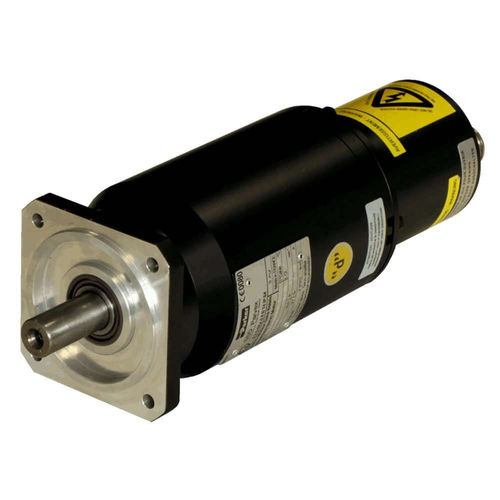

Explosion-proof servo motor EX SeriesACbrushless230 V

explosion-proof servo motor
explosion-proof servo motor
Add to favorites
Compare this product
indicative price

Characteristics

AC/DC
AC
Type
brushless
Voltage
230 V, 400 V
Other characteristics
IP65, air-cooled, for the pharmaceutical industry, packaging machine, permanent magnet, ATEX, explosion-proof, robust
Torque

Min.: 1.75 Nm (1.2907 ft.lb)

Max.: 35 Nm (25.8147 ft.lb)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 7,600 rpm (47,752.21 rad.min-1)

Description

Available in 70-155mm frame sizes, EX motors feature an explosion-proof housing, making them suitable for use in explosive atmospheres. Two versions are available conforming with either North American (UL/cUL) or European (CE) safety standards The EX series is a range of permanent magnet explosion-proof brushless servo motors designed for use in explosive atmospheres. Featuring robust explosion-proof housings, EX synchronous servo motors are capable of bearing internal explosions with no risks of propagation to the neighbouring environment. The EX series of servo motors are characterized by excellent motion quality, dynamic acceleration/deceleration capabilities and high torque output over a wide speed range. Various winding variants and numerous options are available to offer maximum flexibility. Two versions are available, conforming with either the North American or European safety standards. Markets: • Printing & Marking Equipment • Packaging Machinery • Coatings / Ink / Paint • Industrial Chemical Processing • Pharmaceutical Industries • Plastic Processing • Oil & Gas • Power Generation Features/Benefits: • Brushless servo motors with explosion proof housings • Conforming with either CE/ATEX or UL safety standard • High dynamic performance • Compactness and robustness • Maintenance free
