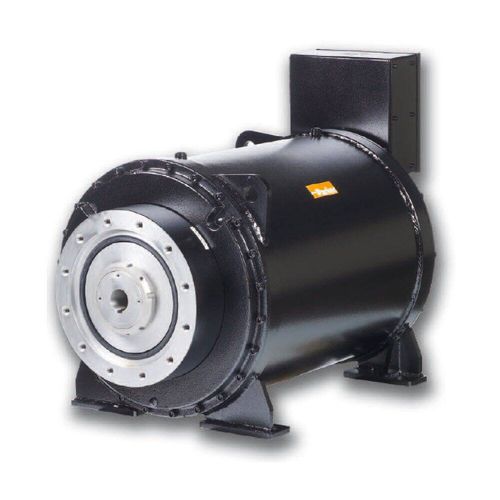

Direct-drive torque motor TMW series

synchronousAC400 V

TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds to 510 min-1 Parker TMW Torque motors are innovative direct drive solutions designed for industrial applications requiring high torque at low speed without any additional mechanical transmission system. They advantageously replace traditional gearbox based systems and their usage results in more compact, more efficient, quieter and virtually maintenance free drive systems. Markets: • Molding • Plastic Processing • Converting • Rubber & Tire Processing • Material Forming Features/Benefits: • Permanent magnet synchronous motor • High torque at low speed • High torque density • Silent operation • Customized mechanical Interface • Integrated thrust bearing (option) Applications: • Extruders • Injection Molding Machines • Winders • Mixers • Crushers • Presses
